P1F-S ISO 15552 Smooth Profile Small Bore Ø32 to 125mm
The P1F-S Series in bore sizes Ø32 to 125mm is an ISO 15552 double-acting pneumatic cylinder with a smooth profile design suitable for standard, low & high temperatures. With various piston rod materials and wiper/rod sealing options for a wide range of applications. Strokes up to 2500 mm.
Size: bore 32, 40, 50, 63, 80, 100 and 125 mm; standard strokes to ISO 4393 (except 40 mm), non-standard to 2500 mm on request. - Temperature: set by the seal — -20°C to +80°C standard (M); -10°C to +150°C high temperature (F); -40°C to +80°C low temperature (L); -30°C to +80°C metallic scraper (Q); ATEX design A -20°C to +60°C, set by the certificate rather than the seal. Option F has no magnetic piston, so position sensors cannot be fitted. - Application: general purpose ISO 15552 actuation; smooth or tie-rod body. - Media: dry filtered compressed air. - Pressure: 1 to 10 bar. Source: Parker PDE3570TCEN
Parker P1F Series ISO 15552 100mm Bore x 300mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet, Chrome Plated CS Piston Rod
10 bar 300 mm
Parker P1F Series ISO 15552 100mm Bore x 400mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet
10 bar 400 mm
Parker P1F Series ISO 15552 100mm Bore x 500mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet
10 bar 500 mm
Parker P1F Series ISO 15552 100mm Bore x 60mm Stroke Smooth Profile Cylinder HIGH Temp w/o Magnet
10 bar 60 mm

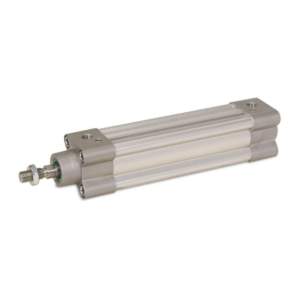

Parker P1F Series ISO 15552 100mm Bore x 60mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet
10 bar 60 mm
Parker P1F Series ISO 15552 100mm Bore x 800mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet
10 bar 800 mm
Parker P1F Series ISO 15552 125mm Bore x 150mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet
10 bar 150 mm
Parker P1F Series ISO 15552 125mm Bore x 160mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet
10 bar 160 mm
Parker P1F Series ISO 15552 125mm Bore x 170mm Stroke Smooth Profile Cylinder STD Temp c/w Magnet
10 bar 170 mm
