Enidine — Shock & Vibration

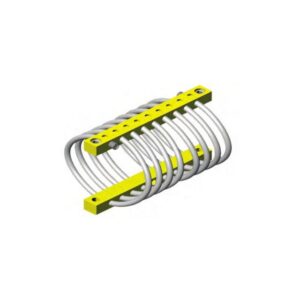

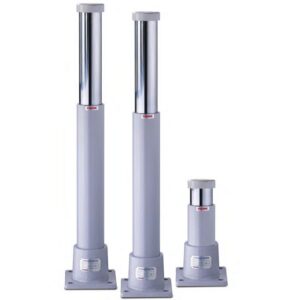

Size: M6 x 0,5 to M115 x 2 threaded bodies, 38 to 156 mm bores on the heavy-duty units; strokes 4 mm to 1 200 mm. - Temperature: -10°C to +80°C standard on the hydraulic units (-10°C to +60°C on HDN/HD/HI); optional fluids and seal packages extend this to -40°C to +100°C. Wire rope isolators run -100°C to +260°C. - Application: controlled deceleration of moving loads, end-of-stroke stopping, feed-rate and motion control, and shock and vibration isolation of equipment and electronics. - Media: sealed hydraulic oil internally; nitrogen-charged return on the HI Series; silicone visco-elastic medium on the Jarret Series; all-metal stainless rope and aluminium bars, no fluid, on the isolators. - Pressure: not rated by fluid pressure — units are sized by energy per cycle (1 Nm/c to 898 200 Nm/c) and maximum propelling force. ECO OEM models offer integrated positive stopping to 7 bar. Range STAMP — ITT Enidine Shock Absorbers and Rate Controls catalogue (EN), pp. 19–175
