Enidine ADA Adustable Series Rate Control 16mm Bore x 150mm Stroke. Tension and Compression Dampening
Enidine ADA Adustable Series Rate Control 16mm Bore x 150mm Stroke. Tension and Compression Dampening, 150 mm stroke.
Overview

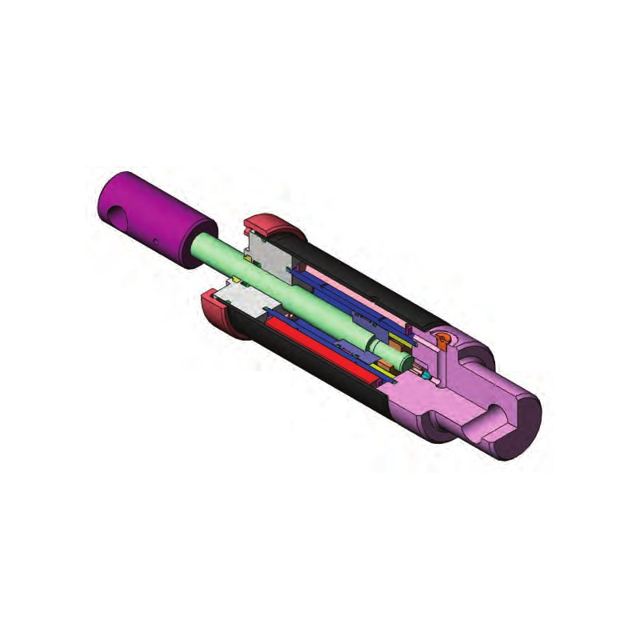

The Enidine ADA Series are adjustable rate controls (hydraulic dampers) that regulate the feed or return speed of a moving load in tension, compression or both directions.
Enidine ADA Adustable Series Rate Control 16mm Bore x 150mm Stroke. Tension and Compression Dampening (part number ADA515MTC): 150 mm stroke. Rate controls resist motion at a controlled rate rather than absorbing a single impact; specify tension (T), compression (C) or both (TC).
Typical applications: adjustable rate control in tension, compression or both.
Genuine ITT Enidine product supplied by Applied Group, ITT Enidine's distributor in South Africa. Full technical data, dimensions and sizing curves are in the attached catalogue extract.
Specifications
| Bore | 16 mm |
|---|---|
| Stroke | 150 mm |
| Size / port thread | 16 mm bore |
| Temperature Range | -10°C to +80°C |
| Application | adjustable rate control in tension, compression or both |
| Media | sealed hydraulic oil |
| Energy capacity | 405 000–721 000 Nm/h; propelling force to 11 000 N |
| Catalogue reference | ITT Enidine A4 Shock Catalog EN, p.102 |
