Enidine ECO OEM 1.15M X 2 Adjustable Shock Absorber. M33 x 1.5 - 50mm Stroke. Multiple Orifice
Enidine ECO OEM 1.15M X 2 — adjustable shock absorber, M33 x 1.5, 50 mm stroke, 385 Nm/cycle.
Overview

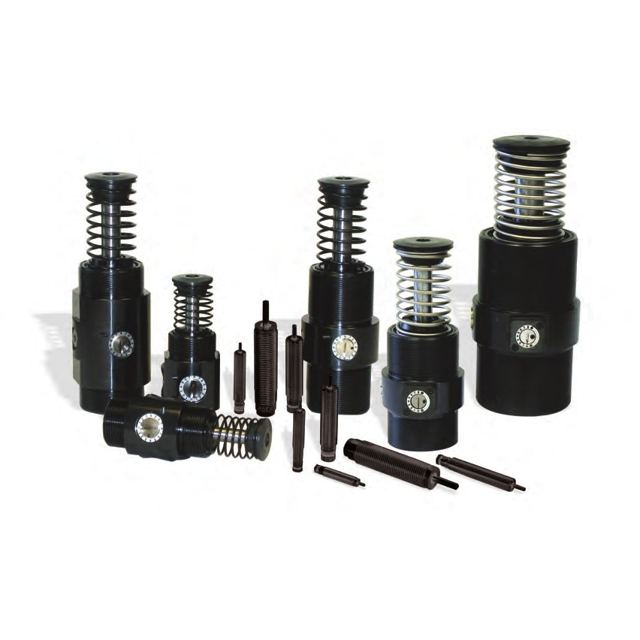

The Enidine ECO OEM Series are adjustable hydraulic shock absorbers. A single external adjustment knob sets the damping across the full stroke, letting one unit be tuned to a wide range of effective weights and impact velocities.
Enidine ECO OEM 1.15M X 2 (part number MF24062): M33 x 1.5 thread, 50 mm stroke, up to 385 Nm per cycle, 98 962 Nm/h, maximum reaction force 11 120 N, maximum propelling force 2 220 N, mass 708 g. Adjust in small increments from the highest setting until the load stops smoothly without bottoming out. Foot mounts, clevises, flanges and stop collars are available as accessories.
Typical applications: Deceleration of moving loads — factory automation, packaging, material handling.
Operating conditions: Hydraulic (sealed, self-contained); -12 °C to +66 °C.
Genuine ITT Enidine product supplied by Applied Group, ITT Enidine's distributor in South Africa. Full technical data, dimensions and sizing curves are in the attached catalogue extract.
Specifications
| Series | Enidine ECO OEM 1.15 |
|---|---|
| Model | ECO OEM 1.15M X 2 |
| Type | Adjustable shock absorber |
| Thread | M33 x 1.5 |
| Stroke | 50 mm |
| Max energy per cycle | 385 Nm |
| Max energy per hour | 98 962 Nm/h |
| Max reaction force | 11 120 N |
| Max propelling force | 2 220 N |
| Optimal impact velocity | 0.3–3.30 m/s |
| Mass | 708 g |
| Temperature range | -12 °C to +66 °C |
| Working media | Hydraulic (sealed, self-contained) |
| Application | Deceleration of moving loads — factory automation, packaging, material handling |
| Catalogue reference | ITT Enidine Shock Absorbers, Rate Controls & Wire Rope Isolators (A4 EN), p.27 |
