Enidine OEMXT 1.5M X 2 Adjustable Shock Absorber. M42 x 1.5 - 50mm Stroke. Multiple Orifice
Enidine OEMXT 1.5M X 2 — adjustable shock absorber, M42 x 1.5, 50 mm stroke, 850 Nm/cycle.
Overview

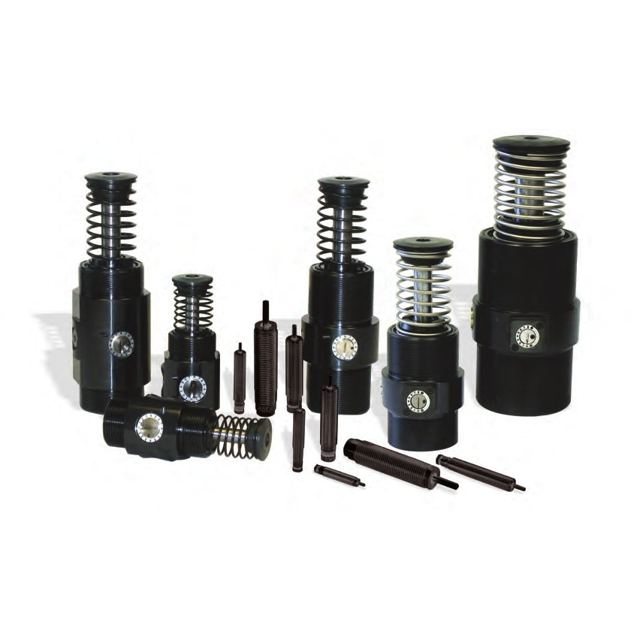

The Enidine OEMXT Xtreme Series are adjustable mid-bore hydraulic shock absorbers with a one-piece hardened body and metallic rod seal for long life in demanding, high-cycle applications. A single external adjustment sets the damping across the full stroke.
Enidine OEMXT 1.5M X 2 (part number MF22191): M42 x 1.5 thread, 50 mm stroke, up to 850 Nm per cycle, 167 000 Nm/h, maximum reaction force 20 000 N, maximum propelling force 2 890 N, mass 1.7 kg. Adjust in small increments from the highest setting until the load stops smoothly without bottoming out. Foot mounts, clevises, flanges and stop collars are available as accessories.
Typical applications: Deceleration of moving loads — factory automation, packaging, material handling.
Operating conditions: Hydraulic (sealed, self-contained); -12 °C to +66 °C.
Genuine ITT Enidine product supplied by Applied Group, ITT Enidine's distributor in South Africa. Full technical data, dimensions and sizing curves are in the attached catalogue extract.
Specifications
| Series | Enidine OEMXT 1.5 |
|---|---|
| Model | OEMXT 1.5M X 2 |
| Type | Adjustable shock absorber |
| Thread | M42 x 1.5 |
| Stroke | 50 mm |
| Max energy per cycle | 850 Nm |
| Max energy per hour | 167 000 Nm/h |
| Max reaction force | 20 000 N |
| Max propelling force | 2 890 N |
| Optimal impact velocity | 0.3–3.5 m/s |
| Mass | 1.7 kg |
| Temperature range | -12 °C to +66 °C |
| Working media | Hydraulic (sealed, self-contained) |
| Application | Deceleration of moving loads — factory automation, packaging, material handling |
| Catalogue reference | ITT Enidine Shock Absorbers, Rate Controls & Wire Rope Isolators (A4 EN), p.30 |
