Parker Hannifin Genuine
Legris Downstream Adaptor 13mm ID
Price on RequestLogin for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
20 bar
Hex Size
n/a
Body Material
Brass
Overview

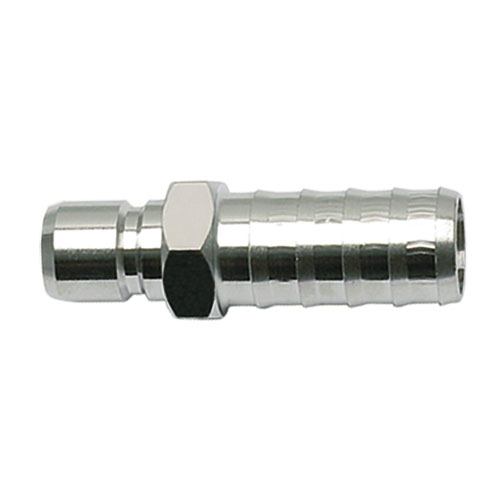

Legris Downstream Adaptor 13mm ID
Specifications
| Function | Straight-Through |
|---|---|
| Coupling Half | Plug |
| Connection Size | n/a |
| Connection Type | Hose Barb |
| Maximum Operating Pressure | 20 bar |
| Temperature Range | -20°C to +100°C |
| Body Material | Brass |
| Seal Material | Without Seal |
| Sleeve Material | Without Sleeve |
| Flow Rate | 2.200 L/min (air) |
| Diameter | 12 mm (nominal) |
| Hex Size | n/a |
| Length | n/a mm |
| Outside Diameter | n/a mm |
| Weight | 0.03 kg |
| Valve Type | Without Valve |
| Interchange Type | Parker Profile |
| For Fluid Type | Air & Neutral Gases (Industrial compressed, lubricated air, inert gases) |
| Product Series | Midi Series |
| Product Type | Pneumatic Quick Couplings |
| Plating Type | Nickel-Plated |
| Region of Origin | France |
| Quantity per Box | VLOOKUP(A298,[1]default_1!$A:$P,16,FALSE) |
| Connection 1 Tube Outside Diameter | 13.0 mm |
| Connection 2 Tube Outside Diameter | 15.2 mm |
| Gripping Ring Material | n/a |
| Special Option | n/a |
| Color | n/a |
| Application | Workshops, Packaging, Spraying, Filling Systems, Factory Automation, Flushing, Cleaning |
Documents
Compliance · Certifications · Safety
Certificate of conformity - REACH_Statement
Certificate of conformity - RoHS LPCE
Certificate of conformity - Mineral Conflict Statement_connectic
Certificate of conformity - 2014 68 EU_connectic
Catalogues & Literature
Parker Legris Rectus - General Catalogue
Tubing Part Number Identification
Quick-Acting Couplers
Metal Quick-Acting Couplers Datasheet
Metal Quick-Acting Couplers 2 Datasheet
