Parker Hannifin Genuine
Legris Mini Silencer 1/4"BSP Brass
Price on RequestLogin for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
In stock · Ships from Johannesburg
Maximum Operating Pressure
12 bar
Connection 1 Type
Male BSPP
Body Material
Brass
Overview

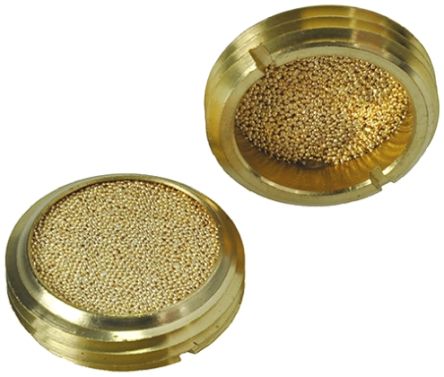

Legris Mini Silencer 1/4"BSP Brass
Specifications
| Maximum Operating Pressure | 12 bar |
|---|---|
| Temperature Range | -20°C to +150°C |
| Body Material | Brass |
| Weight | 0.003 kg |
| For Fluid Type | Compressed Air |
| Product Type | Pneumatic Function Fittings and Flow Control |
| Quantity per Box | 10 |
| Connection 1 Thread Size (metric) | G1/4 |
| Connection 1 Thread Style | BSPP |
| Connection 2 Tube O.D. (mm) | na |
| Shape | Straight |
| Connection 1 Type | Male BSPP |
| Minimum Operating Pressure | 0 bar |
| Connection 1 Size | G 1/4 |
| Configuration | Port to Silencer |
| Application | Robotics, Textile, Semi-Conductors, Packaging, Pneumatics |
| Height | 4.5 mm |
Documents
Catalogues & Literature
FSC Parker Legris Connectors & Nycoil Tubing Catalog - Cat. 3500LEG/NYC
Parker Legris Rectus - General Catalogue
Connection Solutions for Railway Transportation
Silencers Datasheet
Compliance · Certifications · Safety
Enquire about this part
The fastest way to get a price on this SKU is to email our quote desk — your reply lands with an engineer within 4 business hours.
Email a quote request Or use the quote form →
