Parker 26 Series Hose Fitting - Metric Banjo - 28 - Hose -6 - Steel
Parker 26 Series Hose Fitting, Metric Banjo × 28 × Hose -6, steel. 200 bar.
Overview
Parker 26 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes.

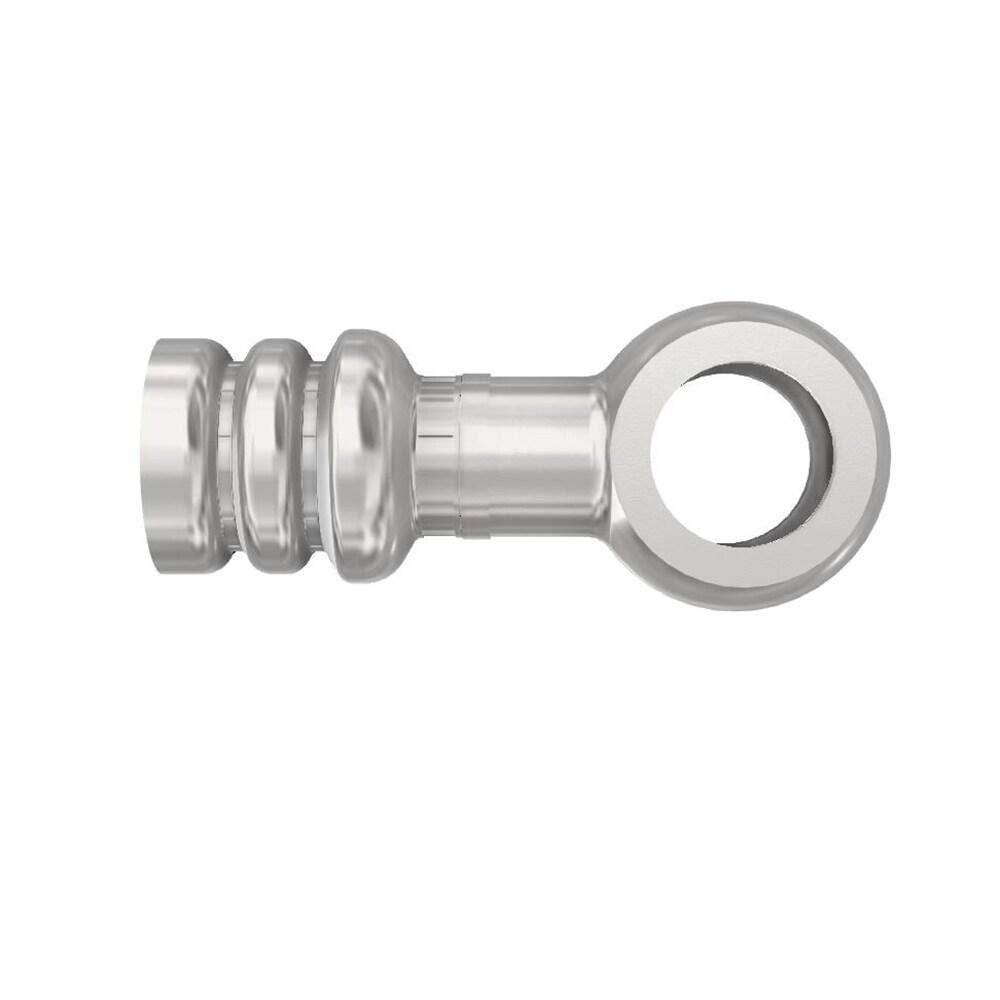

The 14926-14-6 is a Parker 26 Series Hose Fitting with a metric banjo end (28) for size -6 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Rated for maximum working pressure 200 bar — the assembly is rated by the lower of hose and fitting. Suitable for fuels (diesel), lubricants (oils) and petroleum hydraulic fluids (petroleum base).
Typical applications include air brake systems, antifreeze solutions and diesel fuels, across the industrial manufacturing equipment and off-road machinery industries.
Dimensions, pressure ratings and ordering details are on page 165 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 9.5 mm Hose I.D., -6 (Size) |
| Connection 2 Type | Banjo, DIN Metric |
| Connection 2 Size | 14 mm (Banjo Port Diameter) |
| Port Type | Banjo |
| Banjo Port Diameter | 14 mm |
| Shape | Straight |
| Configuration | Hose to Port |
| Body Material | Steel |
| Coating | Chromium 6 Free-plated |
| Fitting Length | 49 mm |
| Connection Length | 28 mm |
| Maximum Operating Pressure | 200 bar |
| For Fluid Type | Fuels (Diesel), Lubricants (Oils), Petroleum Hydraulic Fluids (Petroleum Base) |
| Application | Air Brake Systems, Antifreeze Solutions, Diesel Fuels |
| Industry | Industrial Manufacturing Equipment, Off-road Machinery |
| Specifications Met | DIN 7642 |
| Quantity per Box | 50 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.165 |
