Parker 43 Series Hose Fitting - Metric Banjo - M16 - Hose -6 - Steel
Overview
Parker 43 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes.

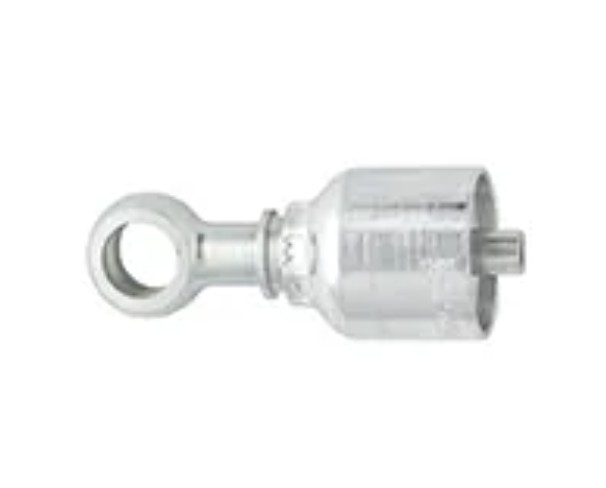

The 14943-16-6 is a Parker 43 Series Hose Fitting with a metric banjo end (M16) for size -6 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Dimensions, pressure ratings and ordering details are on page 118 of the Parker Hose Products Catalog 4400 (USA), attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Materials of Construction | Steel |
|---|---|
| Port Connection | 16 mm |
| Shape | Straight |
| Hose I.D. (size) | -6 |
| Hose Inside Diameter | -6 (Size) |
| Banjo Port Diameter | 16 mm |
| Port Size | 16 mm |
| Catalogue reference | Parker Hose Products Catalog 4400 (USA), p.118 |
Documents
