Parker 43 Series Hose Fitting - Female BSPP Swivel 60° Cone (DKOR) - 90° Elbow - 1" BSP - Hose -16 - Steel
Overview
Parker 43 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes.

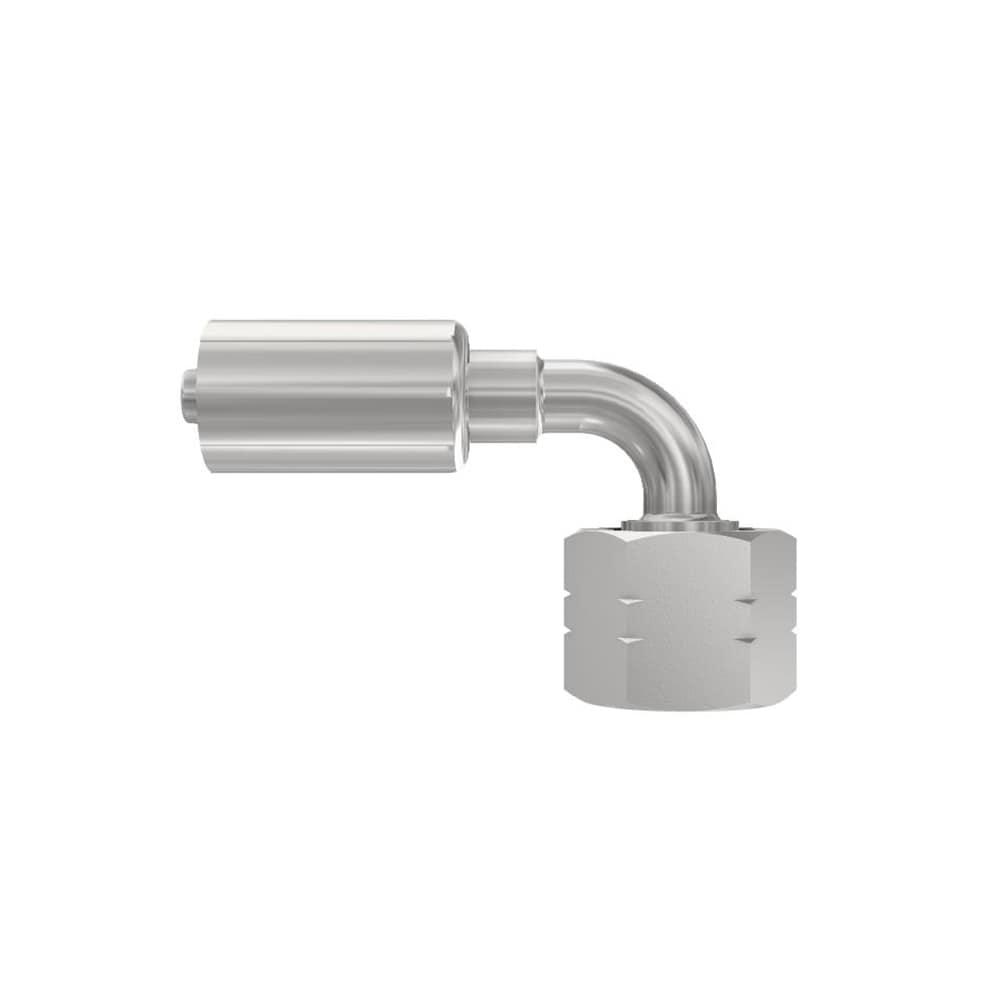

The 1EC43-16-16 is a Parker 43 Series Hose Fitting with a female BSPP swivel 60° cone (DKOR) end (1" BSP), 90° elbow, for size -16 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Suitable for lubricants (oils), petroleum hydraulic fluids (petroleum base) and petroleum hydraulic fluids (phosphate-ester).
Typical applications include general industrial, in-plant automotive, machine tools and on-road vehicles, across the industrial manufacturing equipment, off-road machinery, oil & gas and transportation industries.
Dimensions, pressure ratings and ordering details are on page 243 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 25.4 mm Hose I.D., -16 (Size) |
| Connection 2 Type | 60° Cone, BSP Parallel Pipe, Female, Swivel |
| Connection 2 Size | 1"-11 Thread |
| Port Type | DKOR |
| Shape | Elbow 90° |
| Configuration | Hose to Port |
| Body Material | Steel |
| Coating | Chromium 6 Free-plated |
| Fitting Length | 115 mm |
| Connection Length | 68 mm |
| Drop Length | 71 mm |
| Hex Size | 41 mm |
| For Fluid Type | Lubricants (Oils), Petroleum Hydraulic Fluids (Petroleum Base), Petroleum Hydraulic Fluids (Phosphate-ester) |
| Application | General Industrial, In-Plant Automotive, Machine Tools, On-road Vehicles |
| Industry | Industrial Manufacturing Equipment, Off-road Machinery, Oil & Gas, Transportation |
| Specifications Met | BS 5200, ISO 12151-6 |
| Quantity per Box | 4 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.243 |
