Parker 43 Series Hose Fitting - Female BSPP Swivel 60° Cone (DKR) - 1/4" BSP - Hose -4 - Stainless Steel
Overview
Parker 43 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes.

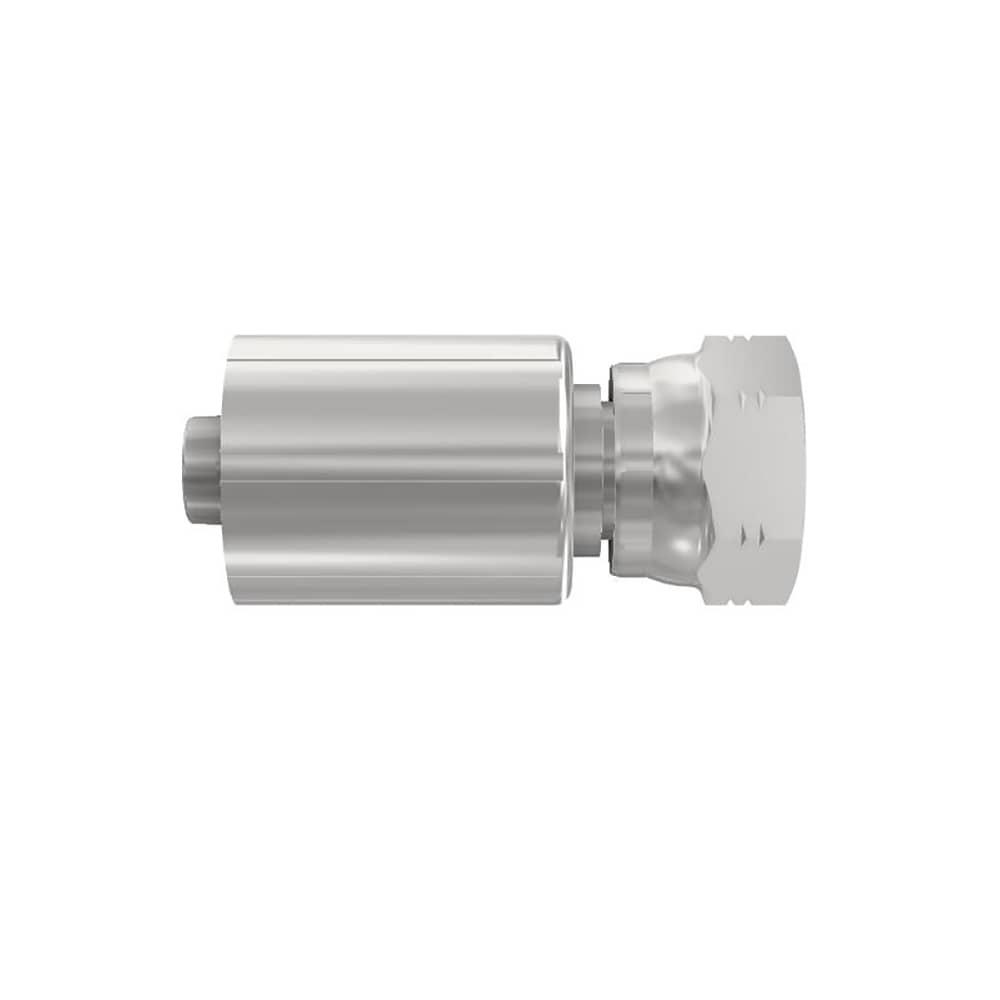

The 19243-4-4C is a Parker 43 Series Hose Fitting with a female BSPP swivel 60° cone (DKR) end (1/4" BSP) for size -4 hose, in stainless steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Suitable for lubricants (oils), petroleum hydraulic fluids (petroleum base) and petroleum hydraulic fluids (phosphate-ester).
Typical applications include general industrial, in-plant automotive, machine tools and on-road vehicles, across the industrial manufacturing equipment, off-road machinery, oil & gas and transportation industries.
Dimensions, pressure ratings and ordering details are on page 116 of the Parker Hose Products Catalog 4400 (USA), attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 6.4 mm Hose I.D., -4 (Size) |
| Connection 2 Type | Female, BSP Parallel Pipe, 60° Cone, Swivel |
| Connection 2 Size | 1/4"-19 Thread |
| Port Type | DKR |
| Shape | Straight |
| Configuration | Hose to Port |
| Body Material | Stainless Steel |
| Fitting Length | 39 mm |
| Connection Length | 17 mm |
| Hex Size | 19 mm |
| For Fluid Type | Lubricants (Oils), Petroleum Hydraulic Fluids (Petroleum Base), Petroleum Hydraulic Fluids (Phosphate-ester) |
| Application | General Industrial, In-Plant Automotive, Machine Tools, On-road Vehicles |
| Industry | Industrial Manufacturing Equipment, Off-road Machinery, Oil & Gas, Transportation |
| Specifications Met | BS 5200-A |
| Quantity per Box | 5 |
| Catalogue reference | Parker Hose Products Catalog 4400 (USA), p.116 |
