Parker 43 Series Hose Fitting - Female ORFS Swivel - 45° Elbow - 3/8" (-6) - Hose -4 - Steel
Overview
Parker 43 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes. ORFS (O-ring face seal, ISO 8434-3 / SAE J1453) ends seal on an elastomer O-ring held in a flat face, giving a leak-free, vibration-resistant connection.

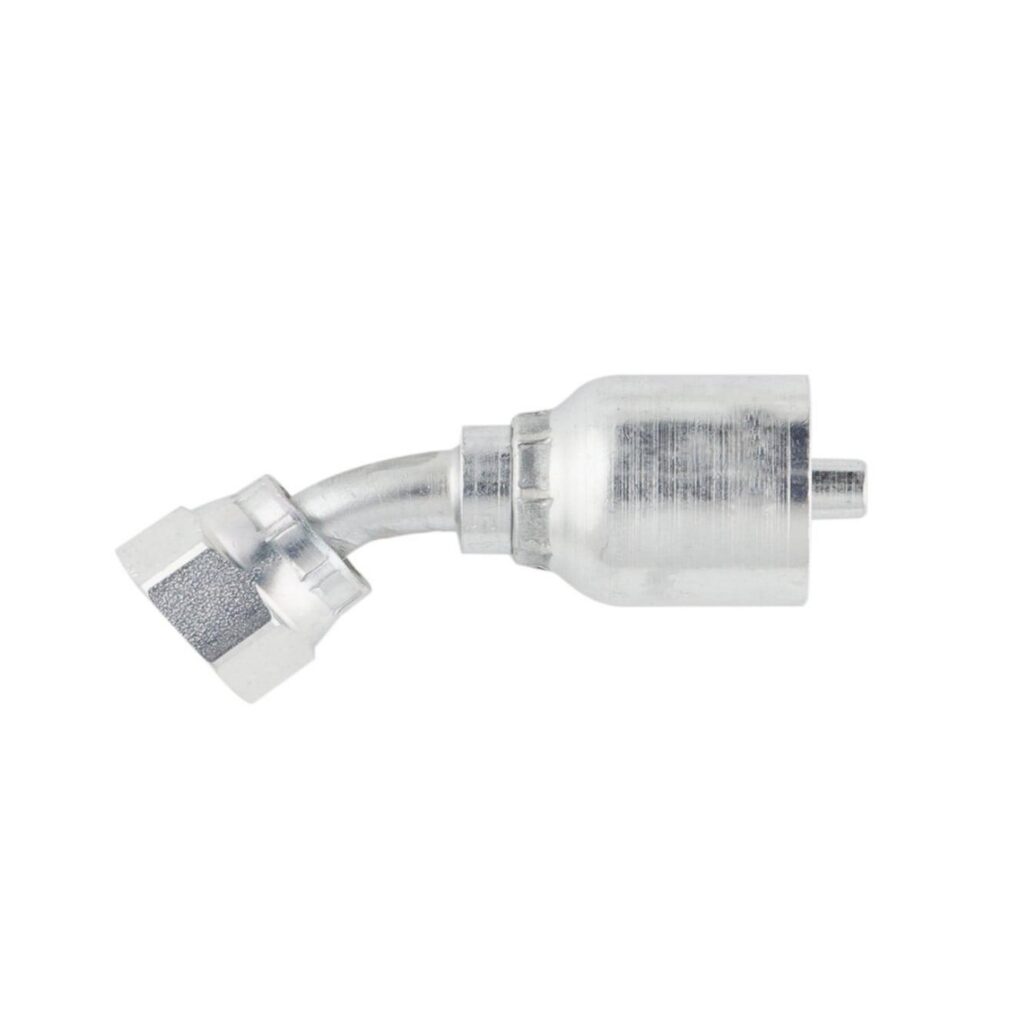

The 1J743-6-4 is a Parker 43 Series Hose Fitting with a female ORFS swivel end (3/8" (-6)), 45° elbow, for size -4 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Dimensions, pressure ratings and ordering details are on page 104 of the Parker Hose Products Catalog 4400 (USA), attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Hose Inside Diameter | -4 (Size), 1/4" |
|---|---|
| Port Size | 3/8" |
| Product Style | Female Seal-Lok® - Swivel |
| Shape | Elbow 45° |
| Body Material | Steel |
| Nut Hex Size | 13/16" |
| Specifications Met | ISO 12151-1-SWE45 / SAE J516 |
| Quantity per Box | 5 |
| Catalogue reference | Parker Hose Products Catalog 4400 (USA), p.104 |
