Parker 43 Series Hose Fitting - Male NPTF Pipe Rigid (AGN) - 1/4" NPTF - Hose -4 - Steel
Overview
Parker 43 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes.

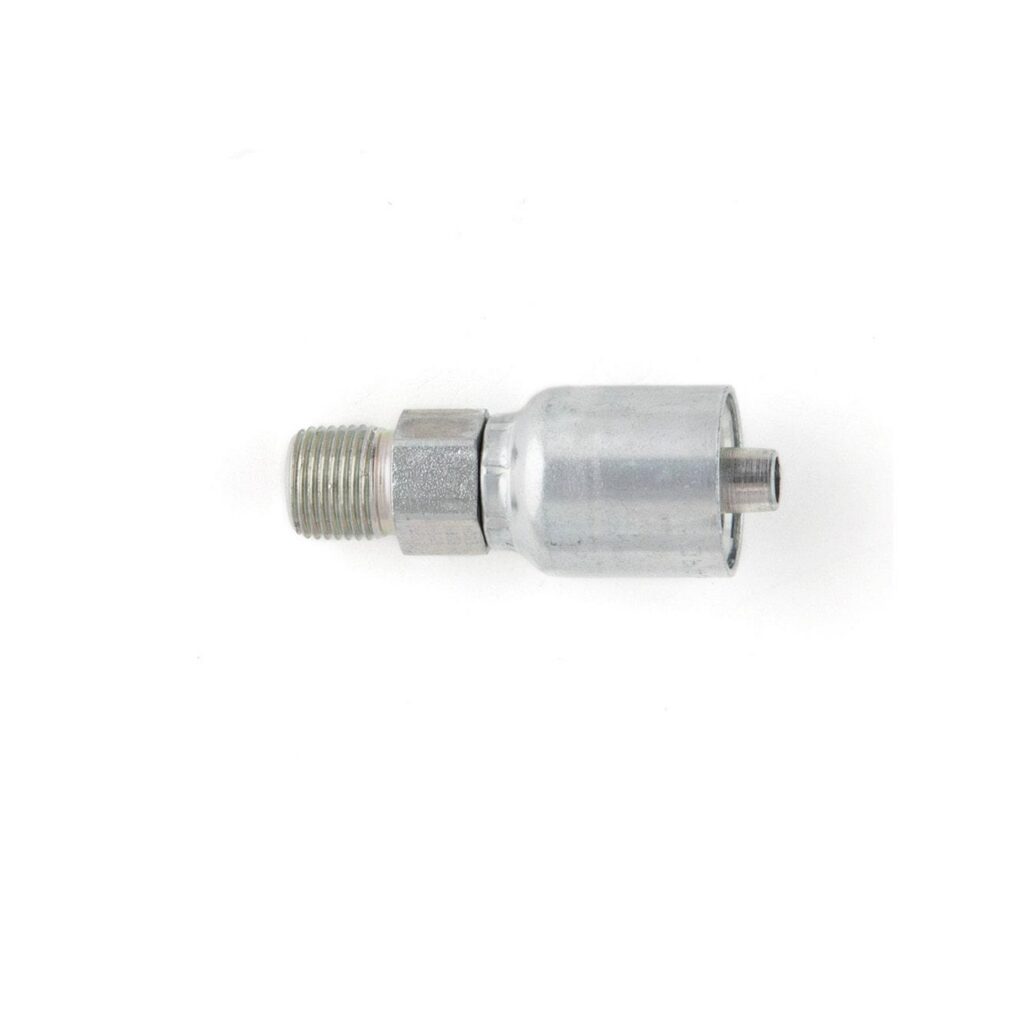

The 10143-4-4 is a Parker 43 Series Hose Fitting with a male NPTF pipe rigid (AGN) end (1/4" NPTF) for size -4 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Dimensions, pressure ratings and ordering details are on page 21 of the Parker Hose Products Catalog 4400 (USA), attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Hose Inside Diameter | -4 (Size), 1/4" |
|---|---|
| Port Size | 1/4" |
| Connection Size | 1/4"-18 Thread |
| Product Style | Male NPTF Pipe - Rigid |
| Shape | Straight |
| Body Material | Steel |
| Nut Hex Size | 9/16" |
| Specifications Met | SAE J476A / J516 |
| Quantity per Box | 25 |
| Catalogue reference | Parker Hose Products Catalog 4400 (USA), p.21 |
