Parker 43 Series Hose Fitting - SAE Code 61 Flange Head (SFL) - 45° Elbow - 2" Flange - Hose -32 - Stainless Steel
Overview
Parker 43 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes.

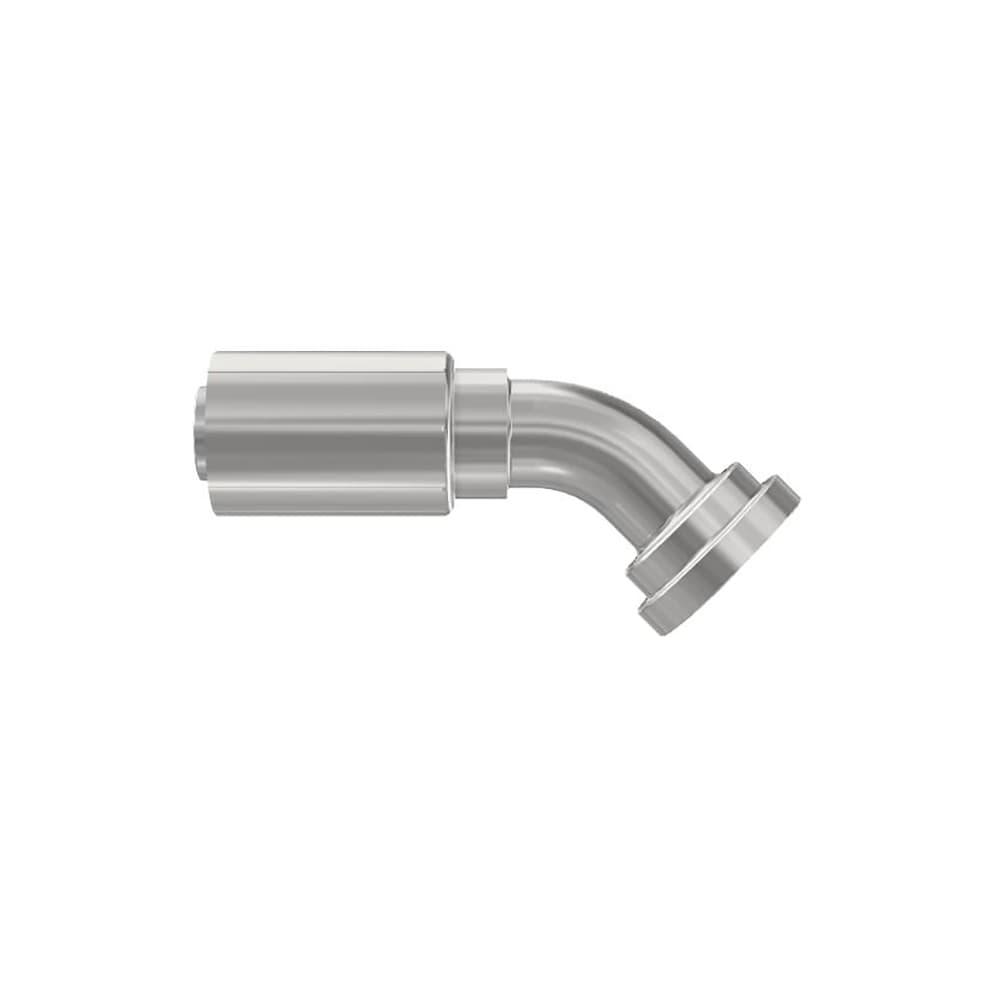

The 11743-32-32C is a Parker 43 Series Hose Fitting with a SAE Code 61 flange head (SFL) end (2" flange), 45° elbow, for size -32 hose, in stainless steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Suitable for lubricants (oils), petroleum hydraulic fluids (petroleum base) and petroleum hydraulic fluids (phosphate-ester).
Typical applications include general industrial, in-plant automotive, machine tools and on-road vehicles, across the industrial manufacturing equipment, off-road machinery, oil & gas and transportation industries.
Dimensions, pressure ratings and ordering details are on page 98 of the Parker Hose Products Catalog 4400 (USA), attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 50.8 mm Hose I.D., -32 (Size) |
| Connection 2 Type | Code 61 Flange, Flange, SAE |
| Connection 2 Size | 2" |
| Port Type | SFL |
| Flange Size | -32 (Size) |
| Shape | Elbow 45° |
| Configuration | Hose to Port |
| Body Material | Stainless Steel |
| Fitting Length | 202 mm |
| Connection Length | 153 mm |
| Drop Length | 56 mm |
| For Fluid Type | Lubricants (Oils), Petroleum Hydraulic Fluids (Petroleum Base), Petroleum Hydraulic Fluids (Phosphate-ester) |
| Application | General Industrial, In-Plant Automotive, Machine Tools, On-road Vehicles |
| Industry | Industrial Manufacturing Equipment, Off-road Machinery, Oil & Gas, Transportation |
| Specifications Met | ISO 12151-3-E45-L |
| Quantity per Box | 1 |
| Catalogue reference | Parker Hose Products Catalog 4400 (USA), p.98 |
