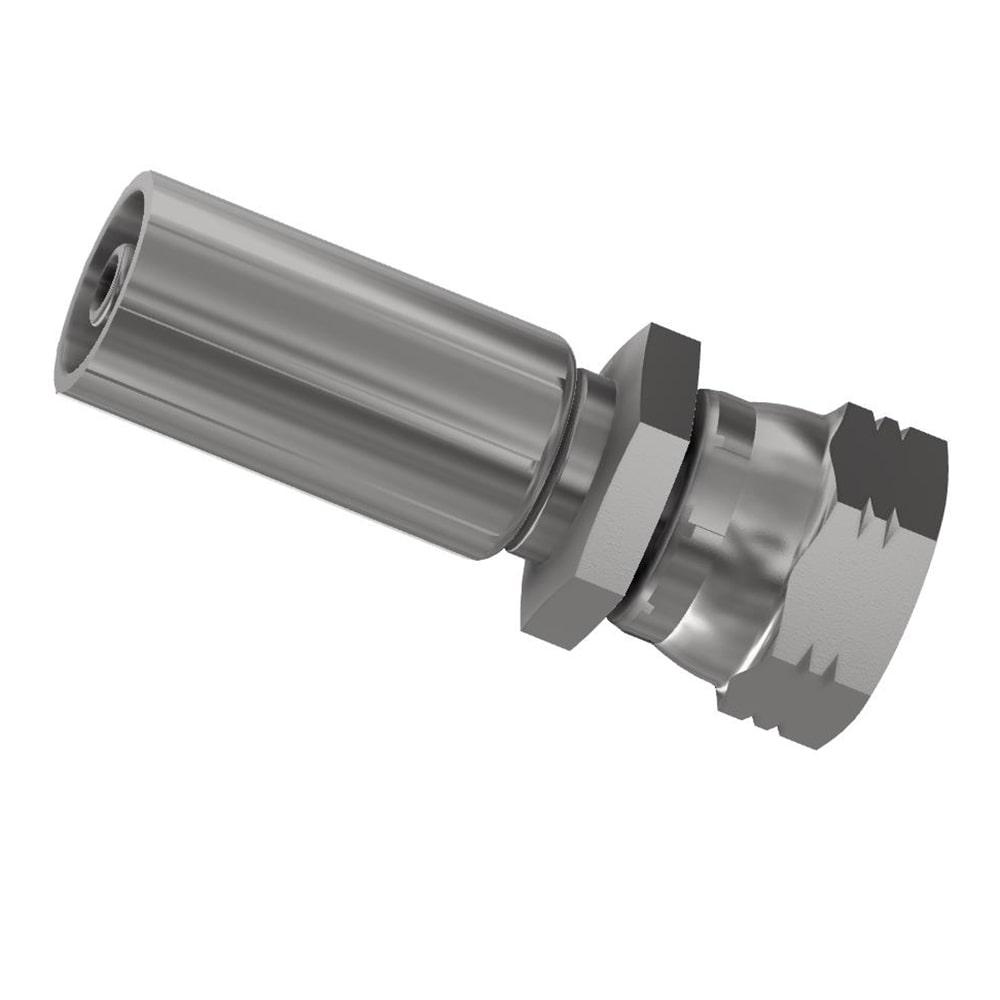

Parker 46 Series Hose Fitting - Female BSPP Swivel 30° Flare (GUI) - 3/4" BSP - Hose -12 - Steel
Parker 46 Series Hose Fitting, Female BSPP Swivel 30° Flare (GUI) × 3/4" BSP × Hose -12, steel. 280 bar.
Overview
Parker 46 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes.
The 1FU46-12-12 is a Parker 46 Series Hose Fitting with a female BSPP swivel 30° flare (GUI) end (3/4" BSP) for size -12 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Rated for maximum working pressure 280 bar — the assembly is rated by the lower of hose and fitting.
Typical applications include hydraulics, across the industrial manufacturing equipment, off-road machinery and transportation industries.
Dimensions, pressure ratings and ordering details are on page 297 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 19.1 mm Hose I.D., -12 (Size) |
| Connection 2 Type | BSP Parallel Pipe, Female, Swivel (30° Flare) |
| Connection 2 Size | 3/4"-14 Thread |
| Port Type | GUI |
| Shape | Straight |
| Body Material | Steel |
| Coating | Chromium 6 Free-plated |
| Fitting Length | 71 mm |
| Connection Length | 45 mm |
| Hex Size 1 | 36 mm |
| Hex Size 2 | 36 mm |
| Maximum Operating Pressure | 280 bar |
| Application | Hydraulics |
| Industry | Industrial Manufacturing Equipment, Off-road Machinery, Transportation |
| Specifications Met | ISO 228-1, JIS B8363 |
| Quantity per Box | 5 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.297 |
