Parker 46 Series Hose Fitting - Female JIC 37° / SAE 45° Swivel (DKJ) - 45° Elbow - 5/16" (-5) - Hose -4 - Steel
Parker 46 Series Hose Fitting, Female JIC 37° / SAE 45° Swivel (DKJ) × 45° Elbow × 5/16" (-5) × Hose -4, steel. 410 bar.
Overview
Parker 46 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes.

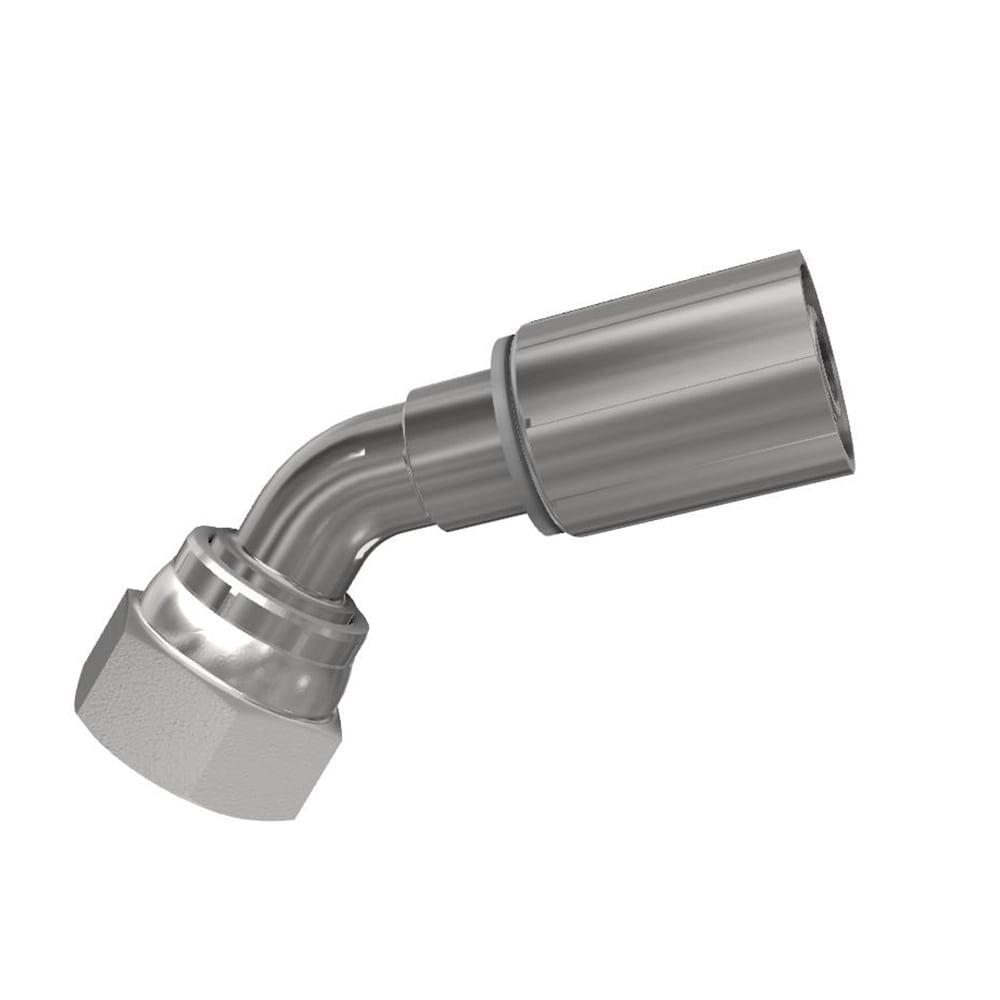

The 13V46-5-4 is a Parker 46 Series Hose Fitting with a female JIC 37° / SAE 45° swivel (DKJ) end (5/16" (-5)), 45° elbow, for size -4 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Rated for maximum working pressure 410 bar — the assembly is rated by the lower of hose and fitting.
Typical applications include hydraulics, across the industrial manufacturing equipment, off-road machinery and transportation industries.
Dimensions, pressure ratings and ordering details are on page 283 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 6.4 mm Hose I.D., -4 (Size) |
| Connection 2 Type | Female, JIC 37°, Swivel |
| Connection 2 Size | 1/2"-20 Thread |
| Port Type | DKJ |
| Shape | Elbow 45° Short Drop |
| Body Material | Steel |
| Coating | Zinc-Nickel |
| Fitting Length | 57 mm |
| Connection Length | 33 mm |
| Drop Length | 9 mm |
| Hex Size | 17 mm |
| Maximum Operating Pressure | 410 bar |
| Application | Hydraulics |
| Industry | Industrial Manufacturing Equipment, Off-road Machinery, Transportation |
| Specifications Met | ISO 12151-5-SWE 45° |
| Quantity per Box | 10 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.283 |
