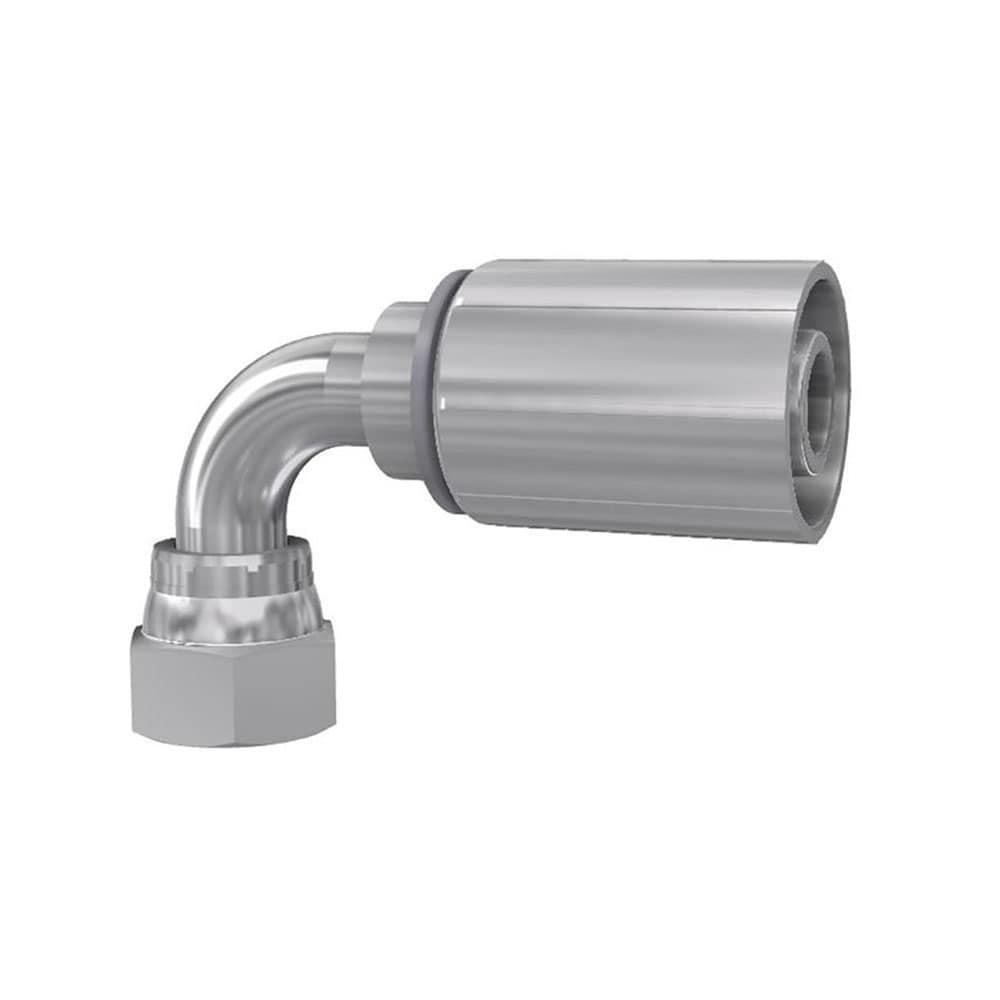

Parker 46 Series Hose Fitting - Female JIC 37° Swivel (DKJ) - 90° Elbow - 3/8" (-6) - Hose -4 - Steel
Parker 46 Series Hose Fitting, Female JIC 37° Swivel (DKJ) × 90° Elbow × 3/8" (-6) × Hose -4, steel. 350 bar.
Overview
Parker 46 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes.
The 13946-6-4 is a Parker 46 Series Hose Fitting with a female JIC 37° swivel (DKJ) end (3/8" (-6)), 90° elbow, for size -4 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Rated for maximum working pressure 350 bar — the assembly is rated by the lower of hose and fitting.
Typical applications include hydraulics, across the industrial manufacturing equipment, off-road machinery and transportation industries.
Dimensions, pressure ratings and ordering details are on page 284 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 6.4 mm Hose I.D., -4 (Size) |
| Connection 2 Type | Female, JIC 37°, Swivel |
| Connection 2 Size | 9/16"-18 Thread |
| Port Type | DKJ |
| Shape | Elbow 90° Short Drop |
| Body Material | Steel |
| Coating | Zinc-Nickel |
| Fitting Length | 49 mm |
| Connection Length | 25 mm |
| Drop Length | 23 mm |
| Hex Size | 19 mm |
| Maximum Operating Pressure | 350 bar |
| Application | Hydraulics |
| Industry | Industrial Manufacturing Equipment, Off-road Machinery, Transportation |
| Specifications Met | ISO 12151-5-SWES |
| Quantity per Box | 20 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.284 |
