Parker 46 Series Hose Fitting - Female Metric 24° L Swivel (DKOL) - 45° Elbow - 10mm Tube - Hose -4 - Steel

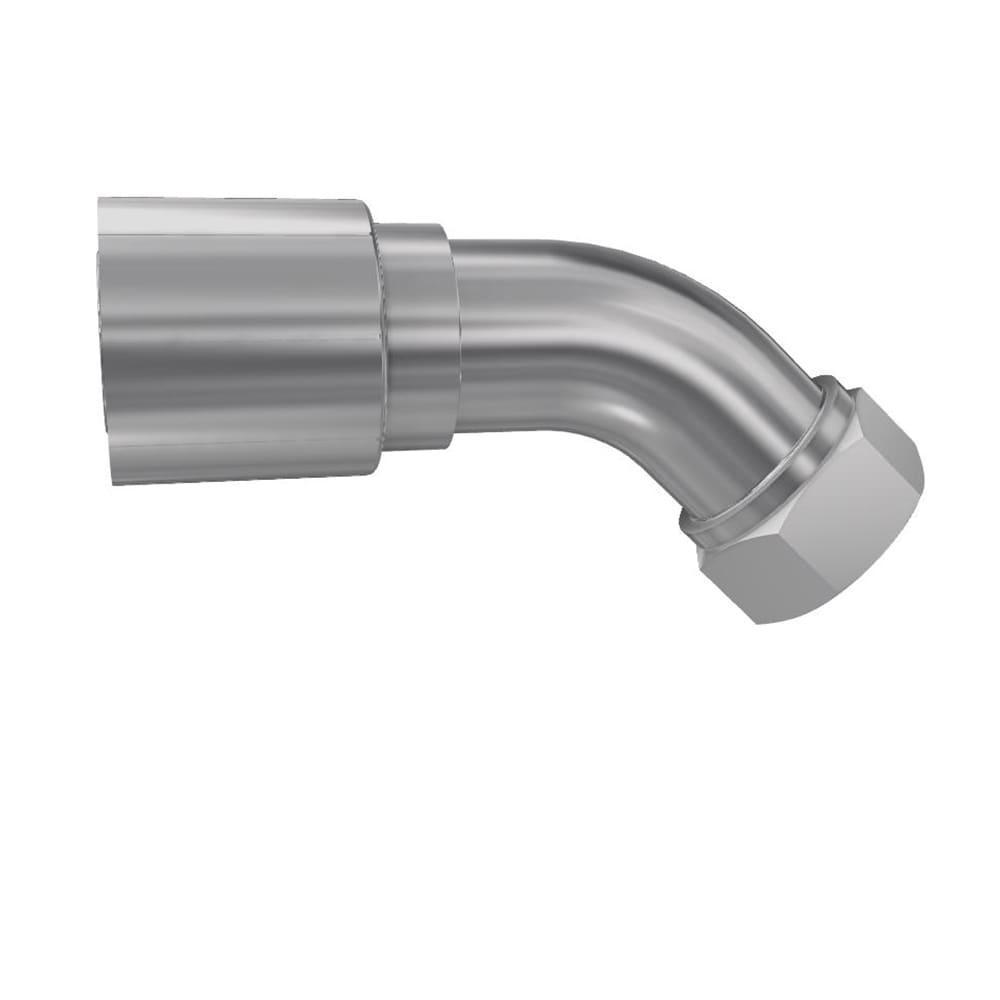

Parker 46 Series Hose Fitting, Female Metric 24° L Swivel (DKOL) × 45° Elbow × 10mm Tube × Hose -4, steel. 400 bar.
Overview
Parker 46 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes. DKOL / DKOS ends are the female metric 24° cone swivels with O-ring (ISO 12151-2) that mate with EO L- and S-series male studs.
The 1CE46-10-4 is a Parker 46 Series Hose Fitting with a female metric 24° L swivel (DKOL) end (10mm tube), 45° elbow, for size -4 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Rated for maximum working pressure 400 bar — the assembly is rated by the lower of hose and fitting.
Typical applications include hydraulics, across the industrial manufacturing equipment, off-road machinery and transportation industries.
Dimensions, pressure ratings and ordering details are on page 263 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 6.4 mm Hose I.D., -4 (Size) |
| Connection 2 Type | 24° Cone (with O-Ring), Female, Metric L, Swivel |
| Connection 2 Size | M16x1.5 mm Thread |
| Port Type | DKOL |
| Tube Outside Diameter | 10 mm |
| Shape | Elbow 45° |
| Body Material | Steel |
| Coating | Chromium 6 Free-plated |
| Fitting Length | 59 mm |
| Connection Length | 36 mm |
| Drop Length | 16 mm |
| Hex Size | 19 mm |
| Maximum Operating Pressure | 400 bar |
| Application | Hydraulics |
| Industry | Industrial Manufacturing Equipment, Off-road Machinery, Transportation |
| Specifications Met | ISO 12151-2-SWE-L |
| Quantity per Box | 20 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.263 |
