Parker 46 Series Hose Fitting - Female Metric Swivel 30° Flare - 90° Elbow - M18x1.5 - Hose -6 - Steel
Parker 46 Series Hose Fitting, Female Metric Swivel 30° Flare × 90° Elbow × M18x1.5 × Hose -6, steel. 350 bar.
Overview
Parker 46 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes.

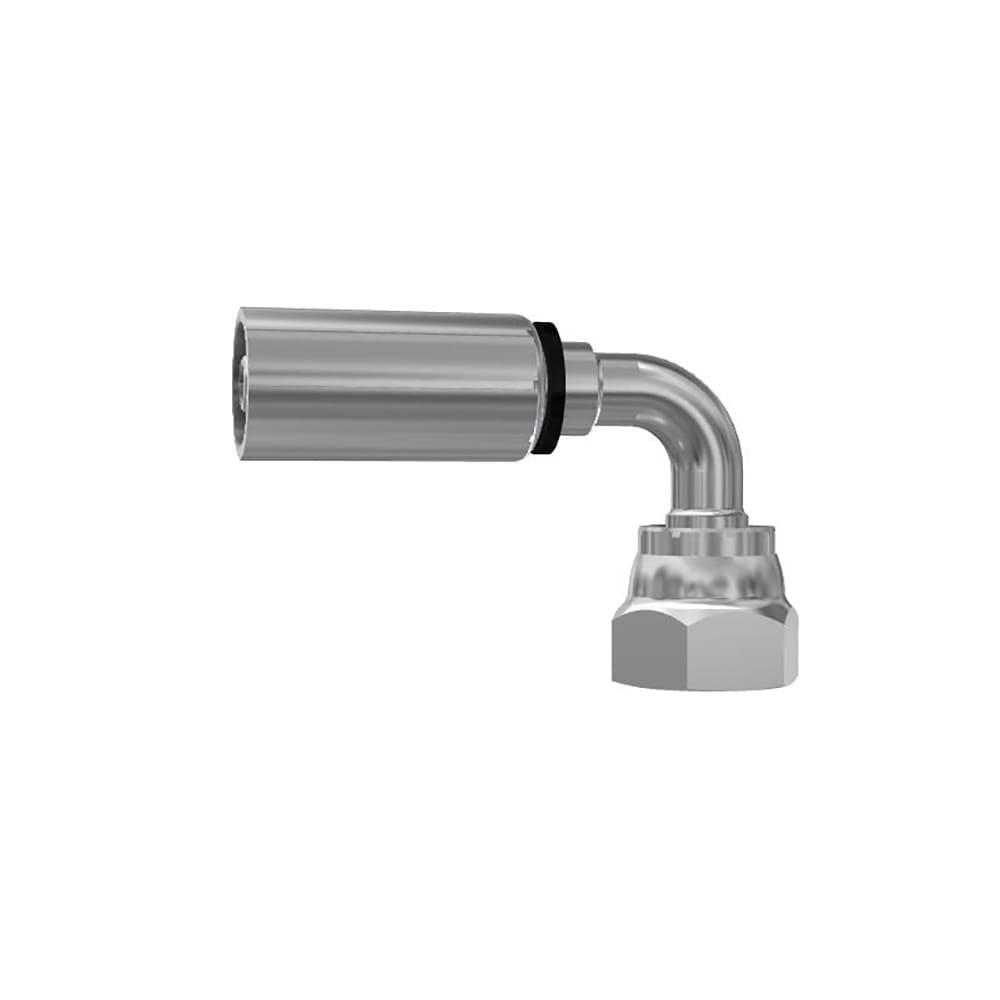

The 1MZ46-6-6 is a Parker 46 Series Hose Fitting with a female metric swivel 30° flare end (M18x1.5), 90° elbow, for size -6 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Rated for maximum working pressure 350 bar — the assembly is rated by the lower of hose and fitting.
Typical applications include hydraulics, across the industrial manufacturing equipment, off-road machinery and transportation industries.
Dimensions, pressure ratings and ordering details are on page 298 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 9.5 mm Hose I.D., -6 (Size) |
| Connection 2 Type | Female, Metric, Swivel (30° Flare) |
| Connection 2 Size | M18x1.5 mm Thread |
| Port Type | JIS |
| Shape | Elbow 90° |
| Body Material | Steel |
| Coating | Chromium 6 Free-plated |
| Fitting Length | 51 mm |
| Connection Length | 28 mm |
| Drop Length | 29 mm |
| Hex Size | 24 mm |
| Maximum Operating Pressure | 350 bar |
| Application | Hydraulics |
| Industry | Industrial Manufacturing Equipment, Off-road Machinery, Transportation |
| Specifications Met | JIS B8363 |
| Quantity per Box | 20 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.298 |
