Parker 46 Series Hose Fitting - Female ORFS Swivel - 90° Elbow Long Drop - 3/8" (-6) - Hose -6 - Steel
Parker 46 Series Hose Fitting, Female ORFS Swivel × 90° Elbow Long Drop × 3/8" (-6) × Hose -6, steel. 635 bar.
Overview
Parker 46 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes. ORFS (O-ring face seal, ISO 8434-3 / SAE J1453) ends seal on an elastomer O-ring held in a flat face, giving a leak-free, vibration-resistant connection.

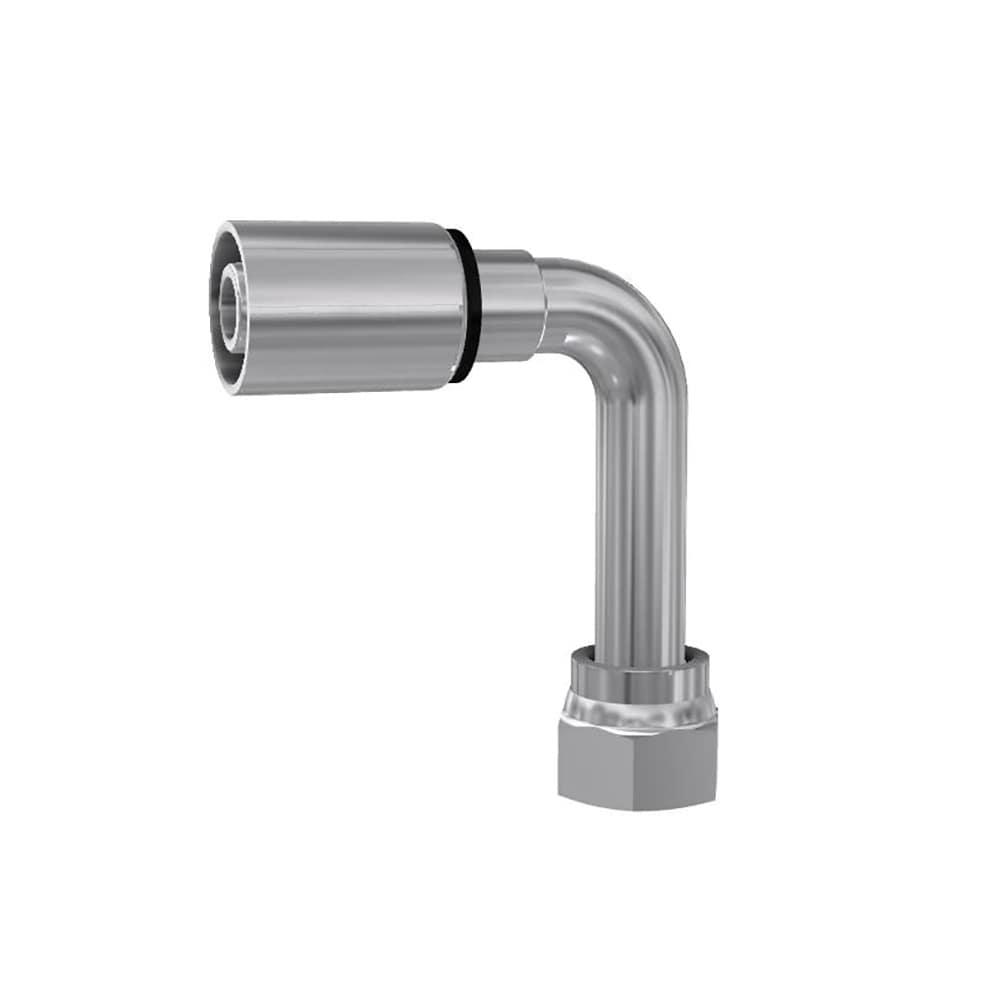

The 1J146-6-6 is a Parker 46 Series Hose Fitting with a female ORFS swivel end (3/8" (-6)), 90° elbow long drop, for size -6 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Rated for maximum working pressure 635 bar — the assembly is rated by the lower of hose and fitting.
Typical applications include hydraulics, across the industrial manufacturing equipment, off-road machinery and transportation industries.
Dimensions, pressure ratings and ordering details are on page 295 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 9.5 mm Hose I.D., -6 (Size) |
| Connection 2 Type | Female, Seal-Lok®, Swivel |
| Connection 2 Size | 11/16"-16 Thread |
| Port Type | ORFS |
| Shape | Elbow 90° Long Drop |
| Body Material | Steel |
| Coating | Zinc-Nickel |
| Fitting Length | 58 mm |
| Connection Length | 35 mm |
| Drop Length | 54 mm |
| Hex Size | 22 mm |
| Maximum Operating Pressure | 635 bar |
| Application | Hydraulics |
| Industry | Industrial Manufacturing Equipment, Off-road Machinery, Transportation |
| Specifications Met | ISO 12151-1-SWEL, SAE J516 |
| Quantity per Box | 10 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.295 |
Documents
Enquire about this part
The fastest way to get a price on this SKU is to email our quote desk — your reply lands with an engineer within 4 business hours.
Email a quote request Or use the quote form →
