Parker 46 Series Hose Fitting - Male JIC 37° Rigid (AGJ) - 3/4" (-12) - Hose -12 - Steel
Parker 46 Series Hose Fitting, Male JIC 37° Rigid (AGJ) × 3/4" (-12) × Hose -12, steel. 350 bar.
Overview
Parker 46 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes.

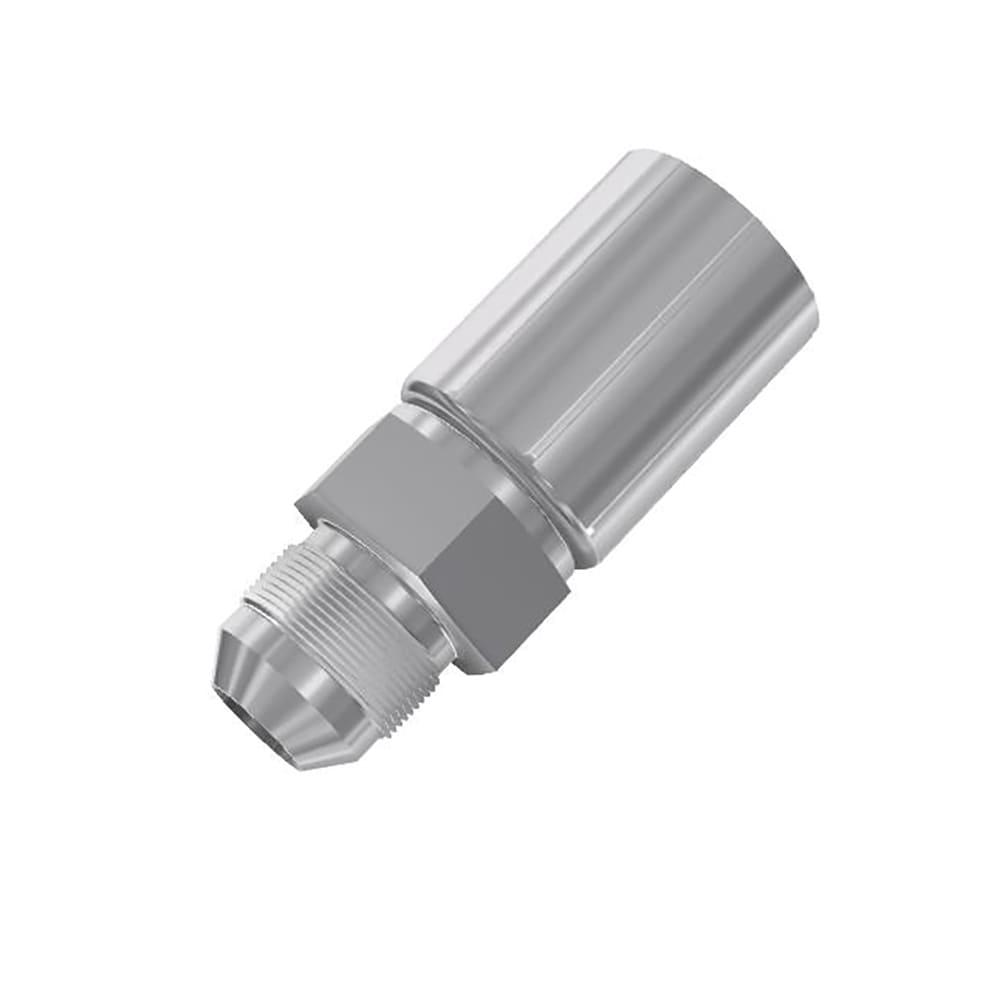

The 10346-12-12 is a Parker 46 Series Hose Fitting with a male JIC 37° rigid (AGJ) end (3/4" (-12)) for size -12 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Rated for maximum working pressure 350 bar — the assembly is rated by the lower of hose and fitting.
Typical applications include hydraulics, across the industrial manufacturing equipment, industrial manufacturing equipment|off-road machinery|transportation, off-road machinery and transportation industries.
Dimensions, pressure ratings and ordering details are on page 281 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 19.1 mm Hose I.D., -12 (Size) |
| Connection 2 Type | JIC 37°, Male, Male, JIC 37°, Rigid, Rigid |
| Connection 2 Size | 1-1/16"-12 Thread |
| Port Type | AGJ |
| Shape | Straight |
| Body Material | Steel |
| Coating | Chromium 6 Free-plated |
| Fitting Length | 68 mm |
| Connection Length | 42 mm |
| Hex Size | 27 mm |
| Maximum Operating Pressure | 350 bar |
| Application | Hydraulics |
| Industry | Industrial Manufacturing Equipment, Industrial Manufacturing Equipment|Off-Road Machinery|Transportation, Off-road Machinery, Transportation |
| Specifications Met | ISO 12151-5-S |
| Quantity per Box | 5 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.281 |
