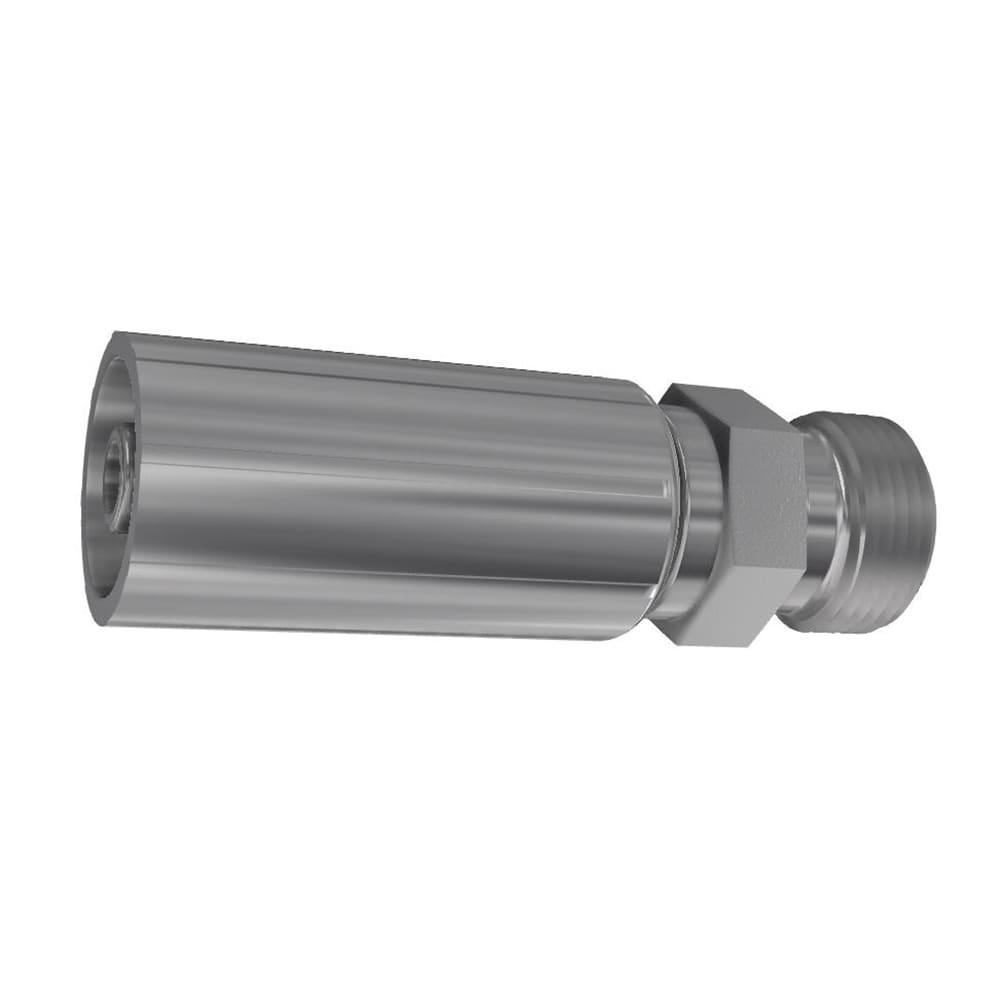

Parker 46 Series Hose Fitting - Male Metric 24° L Rigid (CEL) - 12mm Tube - Hose -4 - Steel
Parker 46 Series Hose Fitting, Male Metric 24° L Rigid (CEL) × 12mm Tube × Hose -4, steel. 350 bar.
Overview
Parker 46 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes.
The 1D046-12-4 is a Parker 46 Series Hose Fitting with a male metric 24° L rigid (CEL) end (12mm tube) for size -4 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Rated for maximum working pressure 350 bar — the assembly is rated by the lower of hose and fitting.
Typical applications include hydraulics, across the industrial manufacturing equipment, off-road machinery and transportation industries.
Dimensions, pressure ratings and ordering details are on page 265 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 6.4 mm Hose I.D., -4 (Size) |
| Connection 2 Type | 24° Cone, Male, Metric L, Rigid |
| Connection 2 Size | M18x1.5 mm Thread |
| Port Type | DKOL |
| Tube Outside Diameter | 12 mm |
| Shape | Straight |
| Body Material | Steel |
| Coating | Chromium 6 Free-plated |
| Fitting Length | 48 mm |
| Connection Length | 24 mm |
| Hex Size | 19 mm |
| Maximum Operating Pressure | 350 bar |
| Application | Hydraulics |
| Industry | Industrial Manufacturing Equipment, Off-road Machinery, Transportation |
| Specifications Met | ISO 12151-2-S-L |
| Quantity per Box | 10 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.265 |
