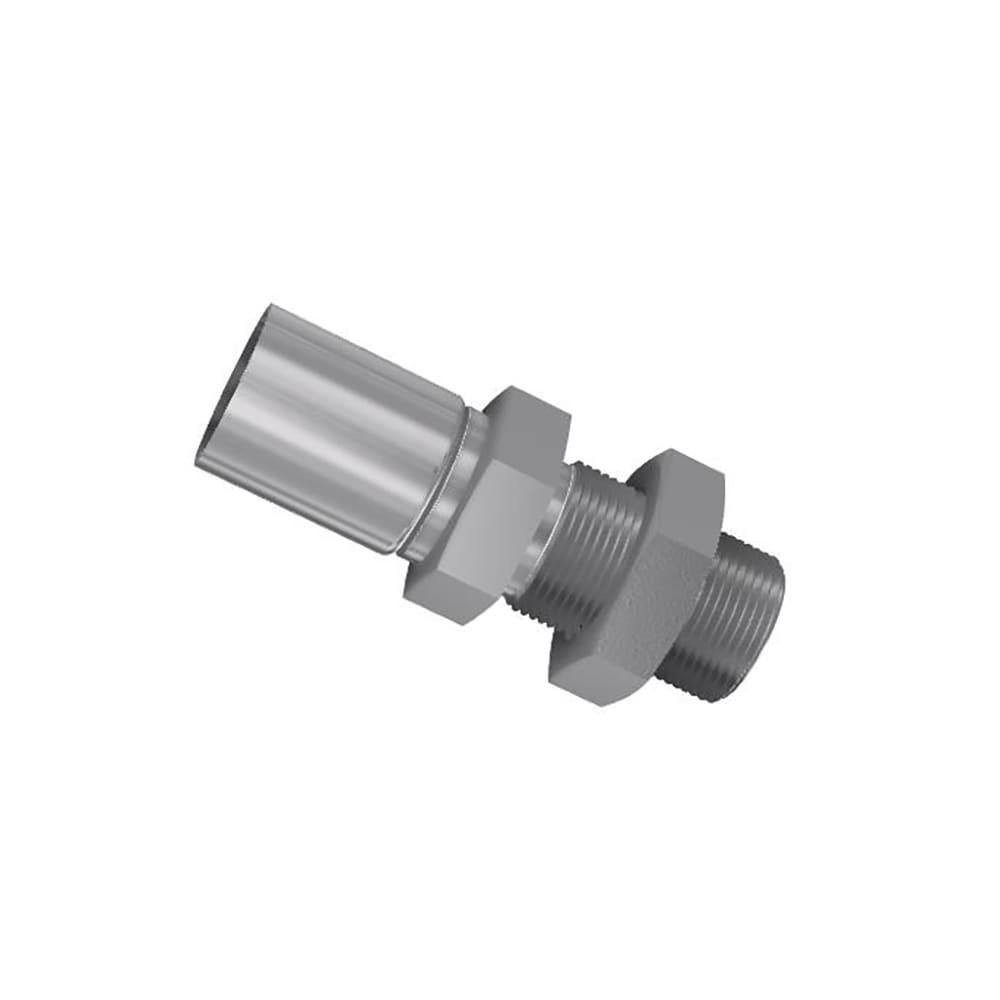

Parker 46 Series Hose Fitting - Male ORFS Bulkhead with Locknut O-ring - 3/8" (-6) - Hose -6 - Steel
Parker 46 Series Hose Fitting, Male ORFS Bulkhead with Locknut O-ring × 3/8" (-6) × Hose -6, steel. 635 bar.
Overview
Parker 46 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes. ORFS (O-ring face seal, ISO 8434-3 / SAE J1453) ends seal on an elastomer O-ring held in a flat face, giving a leak-free, vibration-resistant connection.
The 1JD46-6-6 is a Parker 46 Series Hose Fitting with a male ORFS bulkhead with locknut O-ring end (3/8" (-6)) for size -6 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Rated for maximum working pressure 635 bar — the assembly is rated by the lower of hose and fitting.
Typical applications include hydraulics, across the industrial manufacturing equipment, off-road machinery and transportation industries.
Dimensions, pressure ratings and ordering details are on page 296 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 9.5 mm Hose I.D., -6 (Size) |
| Connection 2 Type | Bulkhead with Locknut, Male, Seal-Lok® |
| Connection 2 Size | 11/16"-16 Thread |
| Port Type | ORFS |
| Shape | Straight |
| Body Material | Steel |
| Coating | Chromium 6 Free-plated |
| Fitting Length | 73 mm |
| Connection Length | 51 mm |
| Hex Size 1 | 27 mm |
| Hex Size 2 | 27 mm |
| Maximum Operating Pressure | 635 bar |
| Application | Hydraulics |
| Industry | Industrial Manufacturing Equipment, Off-road Machinery, Transportation |
| Specifications Met | ISO 12151-1, SAE J516 |
| Quantity per Box | 5 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.296 |
