Parker 46 Series Hose Fitting - SAE Code 61 Flange Head (SFL) - 45° Elbow - 1 1/4" Flange - Hose -16 - Steel
Parker 46 Series Hose Fitting, SAE Code 61 Flange Head (SFL) × 45° Elbow × 1 1/4" Flange × Hose -16, steel. 280 bar.
Overview
Parker 46 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes.

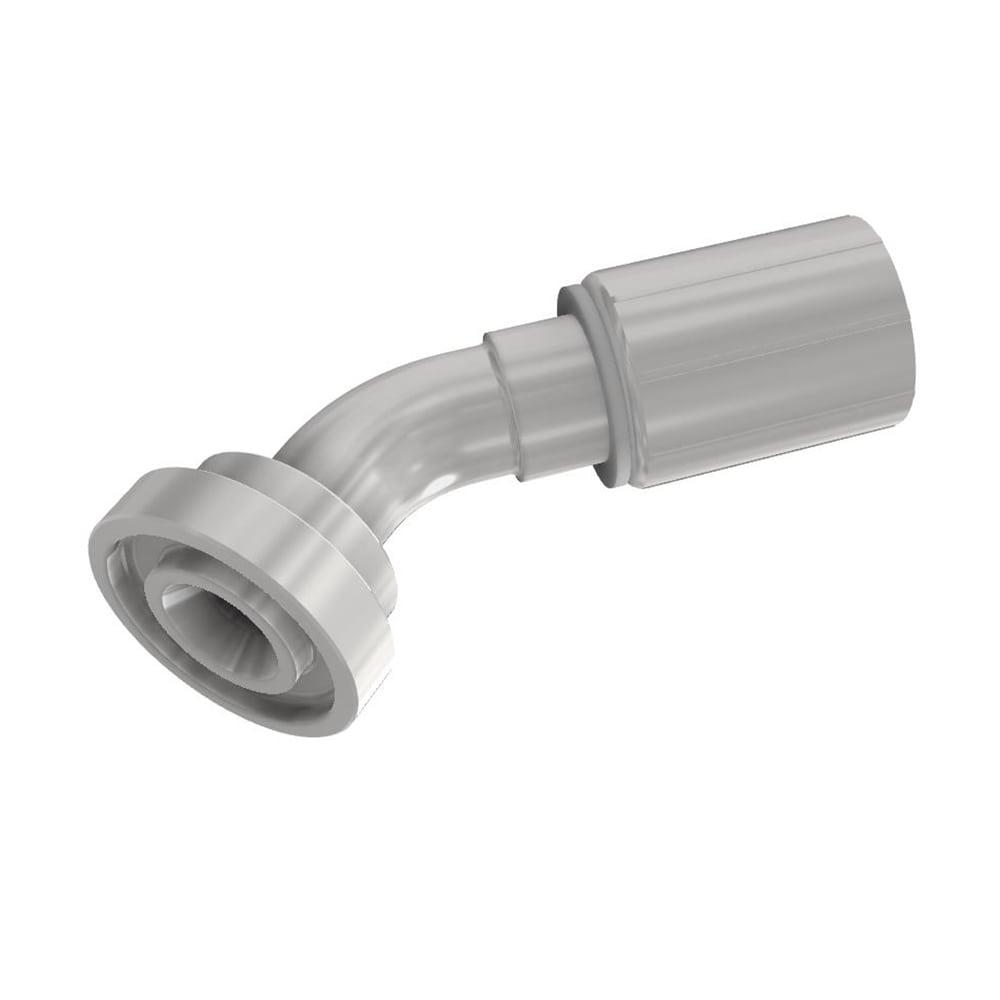

The 11746-20-16 is a Parker 46 Series Hose Fitting with a SAE Code 61 flange head (SFL) end (1 1/4" flange), 45° elbow, for size -16 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Rated for maximum working pressure 280 bar — the assembly is rated by the lower of hose and fitting.
Typical applications include hydraulics, across the industrial manufacturing equipment, industrial manufacturing equipment|off-road machinery|transportation, off-road machinery and transportation industries.
Dimensions, pressure ratings and ordering details are on page 287 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 25.4 mm Hose I.D., -16 (Size) |
| Connection 2 Type | Code 61 Flange, Flange, Flange, SAE Code 61 Head, SAE |
| Connection 2 Size | 1-1/4" |
| Port Type | SFL |
| Flange Size | 51 mm |
| Shape | Elbow 45° |
| Body Material | Steel |
| Coating | Chromium 6 Free-plated |
| Fitting Length | 109 mm |
| Connection Length | 79 mm |
| Drop Length | 32 mm |
| Maximum Operating Pressure | 280 bar |
| Application | Hydraulics |
| Industry | Industrial Manufacturing Equipment, Industrial Manufacturing Equipment|Off-Road Machinery|Transportation, Off-road Machinery, Transportation |
| Specifications Met | ISO 12151-3-E45-L |
| Quantity per Box | 5 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.287 |
