Parker Hannifin Genuine

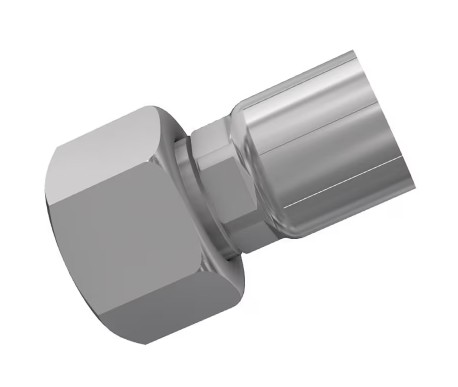

Parker 48 Series Female – JIC 37° SAE 45° Dual Flare Swivel – Straight - Hose ID 3/8" - Steel
R7838,36Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
175 bar, 17.5 MPa
Connection 2 Type
JIC 37°, Female, Swivel
Connection 1 Type
Hose
Overview
Parker 48 Series Female – JIC 37° SAE 45° Dual Flare Swivel – Straight - Hose ID 3/8" - Steel
Specifications
| Maximum Operating Pressure | 175 bar, 17.5 MPa |
|---|---|
| Body Material | Steel |
| For Fluid Type | Mineral Hydraulic Oil, Coolants (Water-Glycol), Hydraulic Fluids, Water, Air |
| Product Type | Hose Fittings |
| Connection 2 Type | JIC 37°, Female, Swivel |
| Shape | Straight |
| Port Size | 2" |
| Port Type | DKJ |
| Hose Inside Diameter | -32 |
| Configuration | Hose to Port |
| Connection 1 Size | -32 (Size), 50.8 mm Hose I.D. |
| Connection Length | 72 mm (see drawing legend B) |
| Fitting Length | 120 mm (see drawing legend A) |
| Specifications Met | ISO 12151-5-SWS |
| Hex Size 2 | 65 mm (see drawing legend H) |
| Connection 2 Size | 2-1/2"-12 inch Thread |
| Coating | Chromium 6 Free-plated |
| Application | Hydraulics |
| Connection 1 Type | Hose |
| Hex Size 1 | 75 mm (see drawing legend W) |
