Parker 70 Series Hose Fitting - Female BSPP Swivel 60° Cone (DKR) - 1/2" BSP - Hose -6 - Steel
Parker 70 Series Hose Fitting, Female BSPP Swivel 60° Cone (DKR) × 1/2" BSP × Hose -6, steel. 310 bar.
Overview
Parker 70 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes.

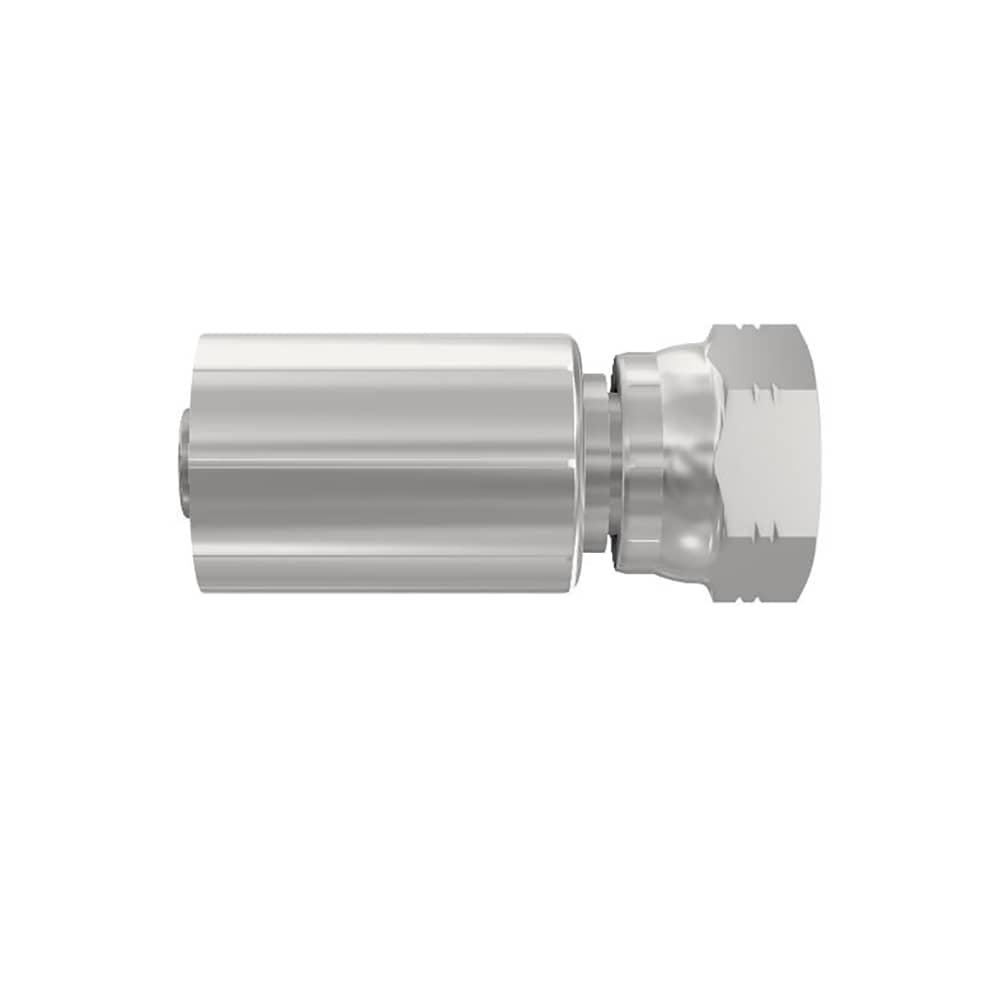

The 19270-8-6 is a Parker 70 Series Hose Fitting with a female BSPP swivel 60° cone (DKR) end (1/2" BSP) for size -6 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Rated for maximum working pressure 310 bar — the assembly is rated by the lower of hose and fitting. Suitable for air, air (general industrial air), coolants (glycol, water-glycol), hydraulic fluids on mineral-oil basis, lubricants, lubricants (oils), mineral hydraulic oil and others.
Typical applications include high pressure hydraulics, across the off-road machinery and transportation industries.
Dimensions, pressure ratings and ordering details are on page 354 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 9.5 mm Hose I.D., -6 (Size) |
| Connection 2 Type | Female, BSP Parallel Pipe, 60° Cone, Swivel |
| Connection 2 Size | 1/2"-14 Thread |
| Port Type | DKR |
| Shape | Straight |
| Configuration | Hose to Port |
| Body Material | Steel |
| Fitting Length | 51 mm |
| Connection Length | 22 mm |
| Hex Size | 27 mm |
| Maximum Operating Pressure | 310 bar |
| For Fluid Type | Air, Air (General Industrial Air), Coolants (Glycol, Water-Glycol), Hydraulic Fluids on Mineral-oil Basis, Lubricants, Lubricants (Oils), Mineral Hydraulic Oil, Water |
| Application | High Pressure Hydraulics |
| Industry | Off-road Machinery, Transportation |
| Specifications Met | BS 5200-A |
| Quantity per Box | 5 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.354 |
Documents
Enquire about this part
The fastest way to get a price on this SKU is to email our quote desk — your reply lands with an engineer within 4 business hours.
Email a quote request Or use the quote form →

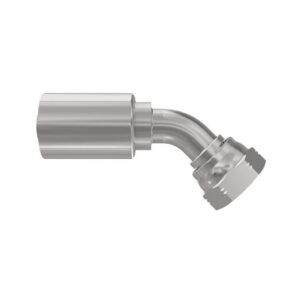

Parker 70 Series Hose Fitting - Female BSPP Swivel 60° Cone (DKR) - 45° Elbow - 3/4" BSP - Hose -12 - Steel
