Parker 70 Series Hose Fitting - Female Metric 24° L Swivel (DKOL) - 45° Elbow - 12mm Tube - Hose -6 - Steel
Parker 70 Series Hose Fitting, Female Metric 24° L Swivel (DKOL) × 45° Elbow × 12mm Tube × Hose -6, steel. 350 bar.
Overview
Parker 70 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes. DKOL / DKOS ends are the female metric 24° cone swivels with O-ring (ISO 12151-2) that mate with EO L- and S-series male studs.

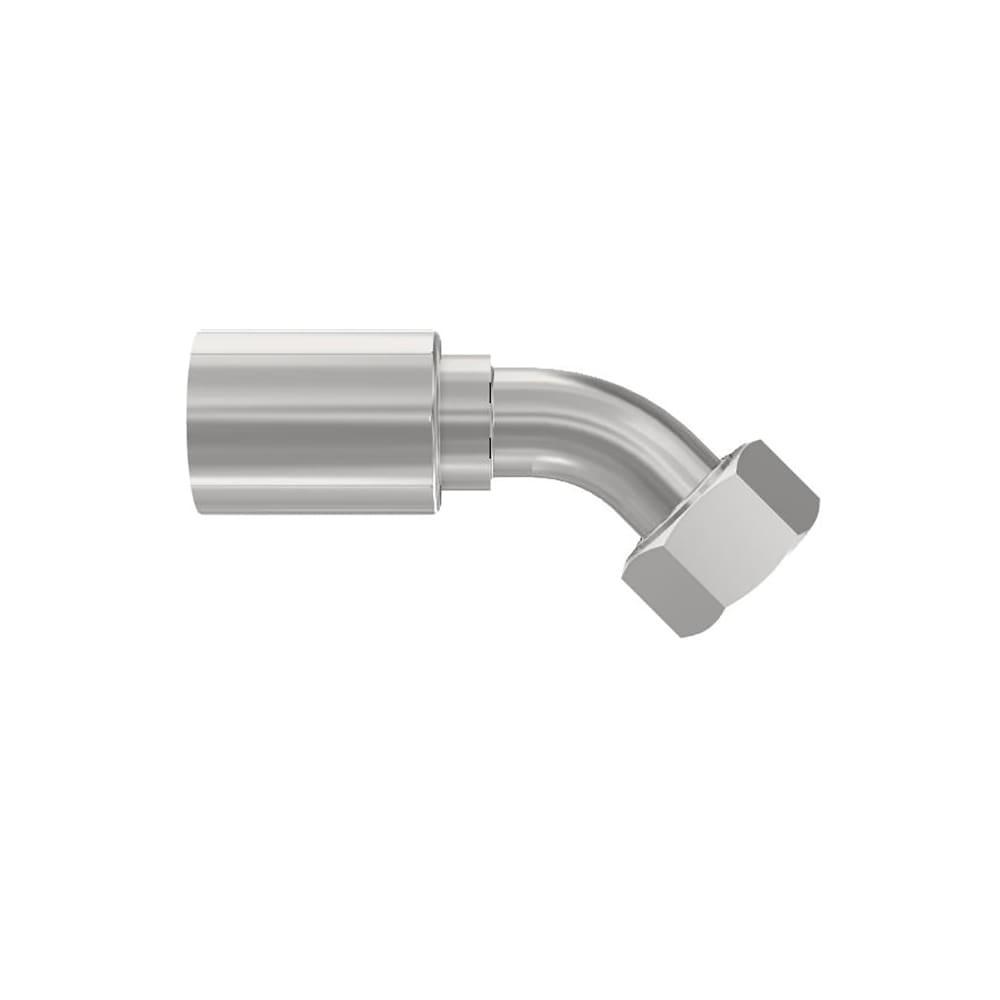

The 1CE70-12-6 is a Parker 70 Series Hose Fitting with a female metric 24° L swivel (DKOL) end (12mm tube), 45° elbow, for size -6 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Rated for maximum working pressure 350 bar — the assembly is rated by the lower of hose and fitting. Suitable for air, air (general industrial air), coolants (glycol, water-glycol), hydraulic fluids on mineral-oil basis, lubricants, lubricants (oils), mineral hydraulic oil and others.
Typical applications include high pressure hydraulics, across the off-road machinery and transportation industries.
Dimensions, pressure ratings and ordering details are on page 350 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 9.5 mm Hose I.D., -6 (Size) |
| Connection 2 Type | 24° Cone (with O-Ring), Female, Metric L, Swivel |
| Connection 2 Size | M18x1.5 mm Thread |
| Port Type | DKOL |
| Tube Outside Diameter | 12 mm |
| Shape | Elbow 45° |
| Configuration | Hose to Port |
| Body Material | Steel |
| Fitting Length | 70 mm |
| Connection Length | 40 mm |
| Drop Length | 20 mm |
| Hex Size | 22 mm |
| Maximum Operating Pressure | 350 bar |
| For Fluid Type | Air, Air (General Industrial Air), Coolants (Glycol, Water-Glycol), Hydraulic Fluids on Mineral-oil Basis, Lubricants, Lubricants (Oils), Mineral Hydraulic Oil, Water |
| Application | High Pressure Hydraulics |
| Industry | Off-road Machinery, Transportation |
| Specifications Met | ISO 12151-2-SWE-L |
| Quantity per Box | 10 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.350 |
