Parker 70 Series Hose Fitting - Female Metric Swivel 30° Flare - M30x1.5 - Hose -12 - Steel
Parker 70 Series Hose Fitting, Female Metric Swivel 30° Flare × M30x1.5 × Hose -12, steel. 280 bar.
Overview
Parker 70 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes.

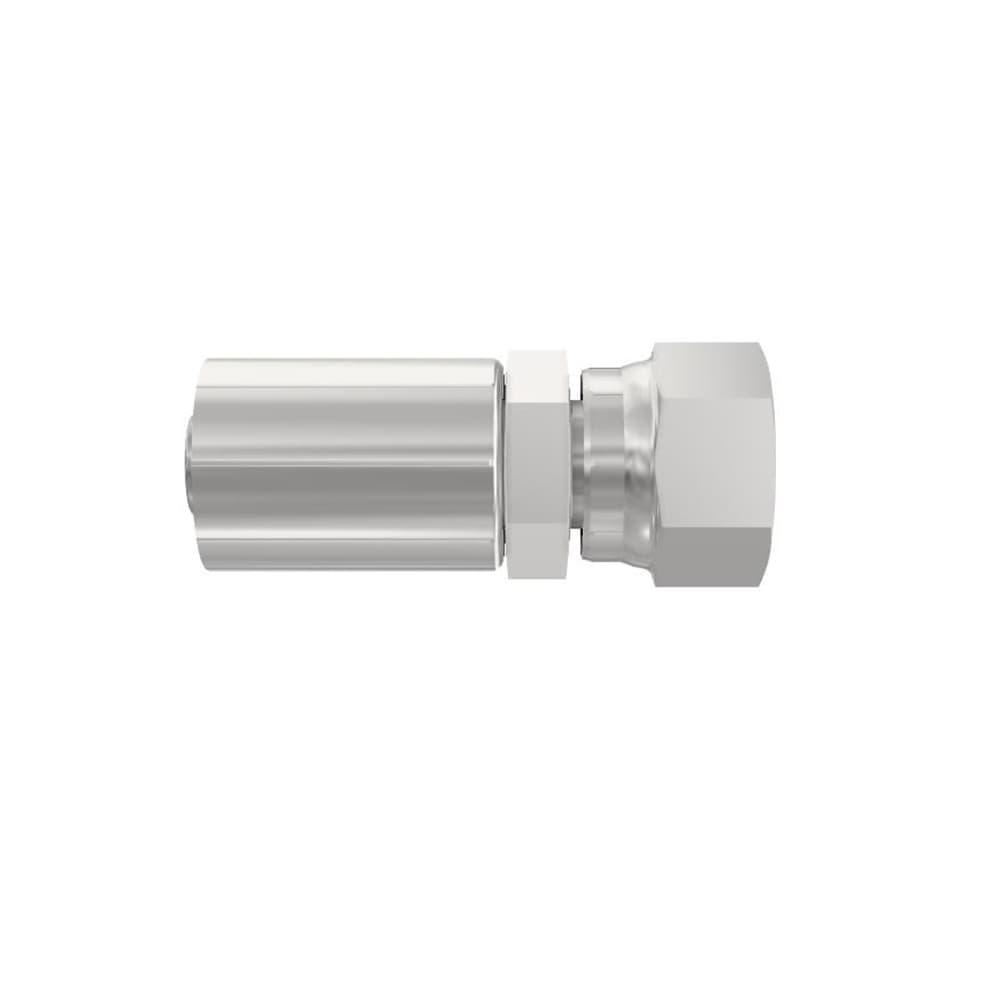

The 1XU70-12-12 is a Parker 70 Series Hose Fitting with a female metric swivel 30° flare end (M30x1.5) for size -12 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Rated for maximum working pressure 280 bar — the assembly is rated by the lower of hose and fitting. Suitable for air, air (general industrial air), coolants (glycol, water-glycol), hydraulic fluids on mineral-oil basis, lubricants, lubricants (oils), mineral hydraulic oil and others.
Typical applications include high pressure hydraulics, across the off-road machinery and transportation industries.
Dimensions, pressure ratings and ordering details are on page 367 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 19.1 mm Hose I.D., -12 (Size) |
| Connection 2 Type | Female, Metric, Swivel (30° Flare) |
| Port Type | Komatsu |
| Shape | Straight |
| Configuration | Hose to Port |
| Body Material | Steel |
| Fitting Length | 68 mm |
| Connection Length | 28 mm |
| Hex Size 1 | 36 mm |
| Hex Size 2 | 32 mm |
| Maximum Operating Pressure | 280 bar |
| For Fluid Type | Air, Air (General Industrial Air), Coolants (Glycol, Water-Glycol), Hydraulic Fluids on Mineral-oil Basis, Lubricants, Lubricants (Oils), Mineral Hydraulic Oil, Water |
| Application | High Pressure Hydraulics |
| Industry | Off-road Machinery, Transportation |
| Specifications Met | JIS B8363 |
| Quantity per Box | 4 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.367 |
