Parker 70 Series Hose Fitting - SAE Code 61 Flange Head (SFL) - 90° Elbow - 3/4" Flange - Hose -10 - Steel
Parker 70 Series Hose Fitting, SAE Code 61 Flange Head (SFL) × 90° Elbow × 3/4" Flange × Hose -10, steel. 350 bar.
Overview
Parker 70 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes.

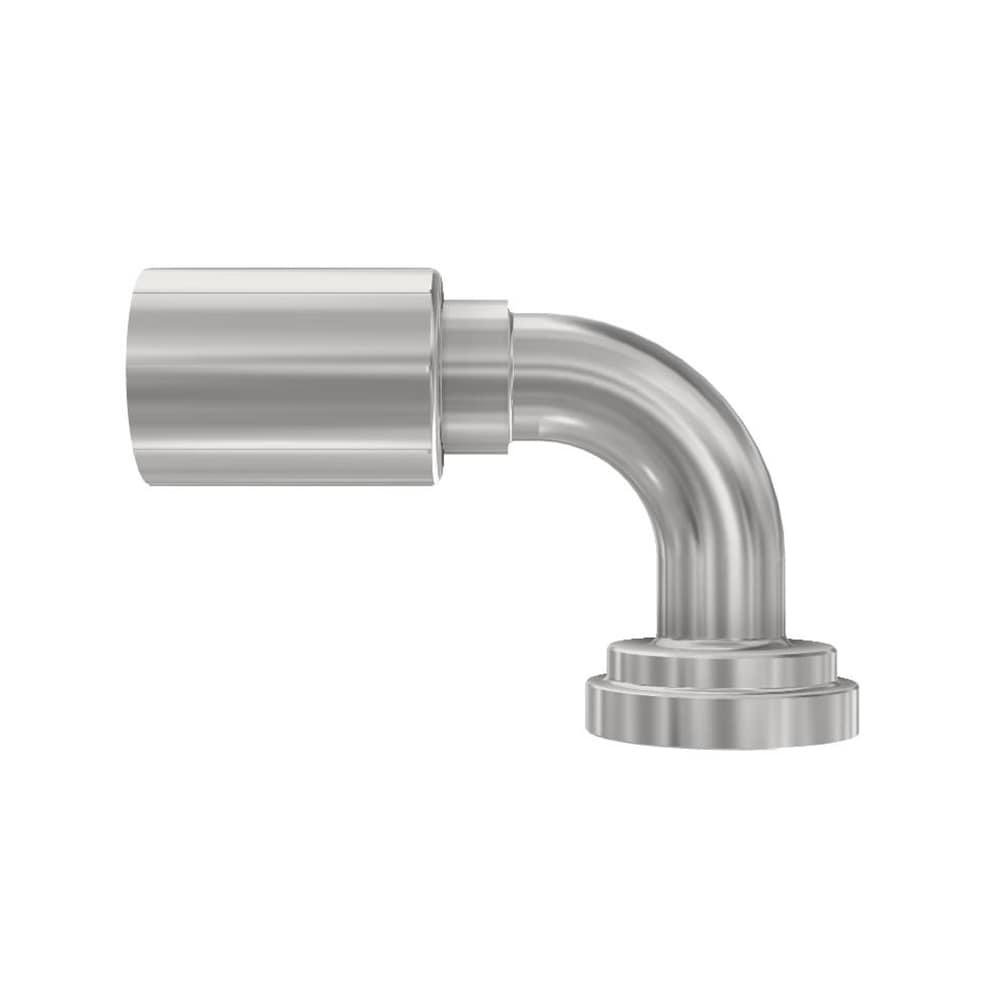

The 11970-12-10 is a Parker 70 Series Hose Fitting with a SAE Code 61 flange head (SFL) end (3/4" flange), 90° elbow, for size -10 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Rated for maximum working pressure 350 bar — the assembly is rated by the lower of hose and fitting. Suitable for air, air (general industrial air), coolants (glycol, water-glycol), hydraulic fluids on mineral-oil basis, lubricants, lubricants (oils), mineral hydraulic oil and others.
Typical applications include high pressure hydraulics, across the off-road machinery and transportation industries.
Dimensions, pressure ratings and ordering details are on page 361 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 15.9 mm Hose I.D., -10 (Size) |
| Connection 2 Type | Code 61 Flange, Flange, SAE |
| Connection 2 Size | 3/4" |
| Port Type | SFL |
| Flange Size | 38 mm |
| Shape | Elbow 90° |
| Configuration | Hose to Port |
| Body Material | Steel |
| Fitting Length | 95 mm |
| Connection Length | 65 mm |
| Drop Length | 54 mm |
| Maximum Operating Pressure | 350 bar |
| For Fluid Type | Air, Air (General Industrial Air), Coolants (Glycol, Water-Glycol), Hydraulic Fluids on Mineral-oil Basis, Lubricants, Lubricants (Oils), Mineral Hydraulic Oil, Water |
| Application | High Pressure Hydraulics |
| Industry | Off-road Machinery, Transportation |
| Specifications Met | ISO 12151-3-E-L |
| Quantity per Box | 4 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.361 |
