Parker 77 Series Hose Fitting - Female Metric 24° L Swivel (DKOL) - 15mm Tube - Hose -8 - Stainless Steel
Parker 77 Series Hose Fitting, Female Metric 24° L Swivel (DKOL) × 15mm Tube × Hose -8, stainless steel. 315 bar.
Overview
Parker 77 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes. DKOL / DKOS ends are the female metric 24° cone swivels with O-ring (ISO 12151-2) that mate with EO L- and S-series male studs.

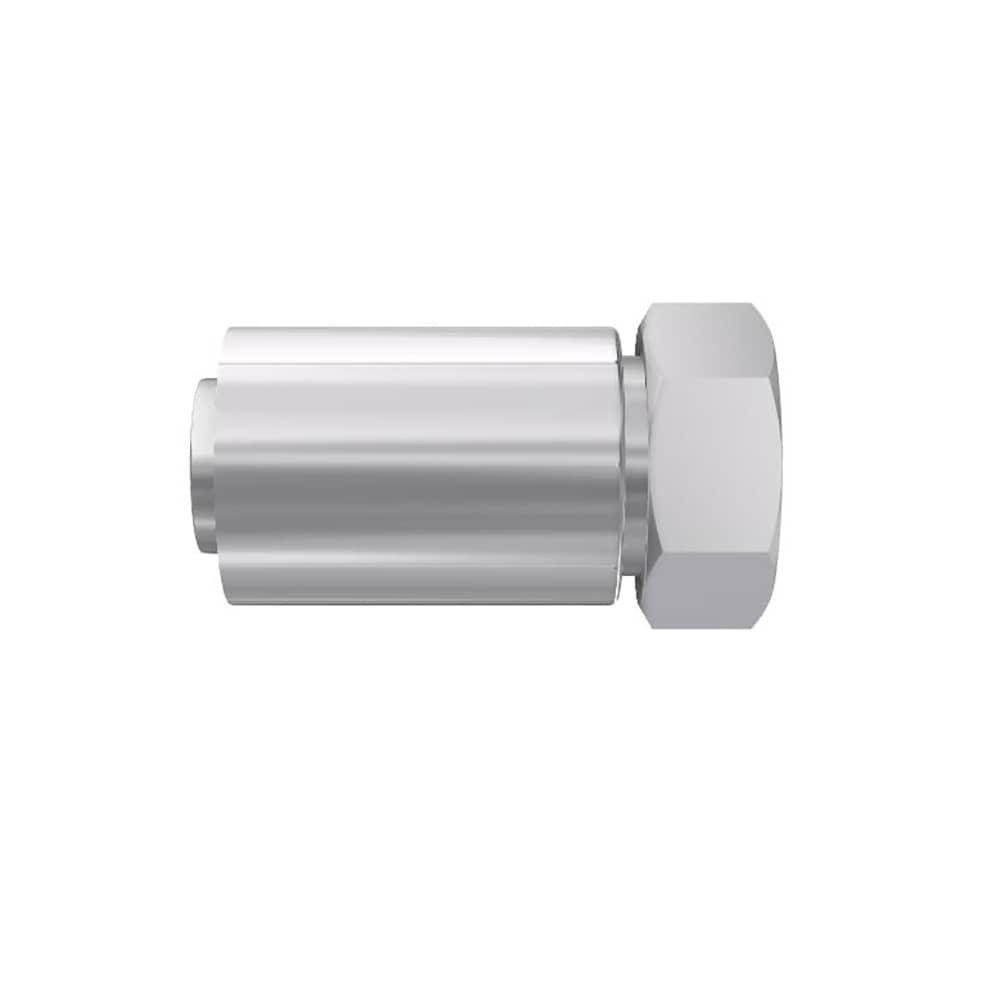

The 1CA77-15-8C is a Parker 77 Series Hose Fitting with a female metric 24° L swivel (DKOL) end (15mm tube) for size -8 hose, in stainless steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Rated for maximum working pressure 315 bar — the assembly is rated by the lower of hose and fitting. Suitable for lubricants (oils) and petroleum hydraulic fluids (petroleum base).
Typical applications include lubricating oils and petroleum base hydraulic fluids, across the industrial manufacturing equipment and off-road machinery industries.
Dimensions, pressure ratings and ordering details are on page 386 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 12.7 mm, -8 (Size) |
| Connection 2 Type | 24° Cone (with O-Ring), Female, Metric L, Swivel |
| Connection 2 Size | M22x1.5 mm Thread |
| Port Type | DKOL |
| Tube Outside Diameter | 15 mm |
| Shape | Straight |
| Configuration | Hose to Port |
| Body Material | Stainless Steel |
| Fitting Length | 63 mm |
| Connection Length | 28 mm |
| Hex Size | 27 mm |
| Maximum Operating Pressure | 315 bar |
| For Fluid Type | Lubricants (Oils), Petroleum Hydraulic Fluids (Petroleum Base) |
| Application | Lubricating Oils, Petroleum Base Hydraulic Fluids |
| Industry | Industrial Manufacturing Equipment, Off-road Machinery |
| Specifications Met | ISO 12151-2-SWS-L |
| Quantity per Box | 5 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.386 |
