Parker 77 Series Hose Fitting - Female ORFS Swivel Short - 5/8" (-10) - Hose -10 - Steel
Overview
Parker 77 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes. ORFS (O-ring face seal, ISO 8434-3 / SAE J1453) ends seal on an elastomer O-ring held in a flat face, giving a leak-free, vibration-resistant connection.
The 1JC77-10-10 is a Parker 77 Series Hose Fitting with a female ORFS swivel short end (5/8" (-10)) for size -10 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Dimensions, pressure ratings and ordering details are on page 406 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Hose Inside Diameter | -10 (Size), 5/8" |
|---|---|
| Port Size | 5/8" |
| Connection Size | 1"-14 Thread |
| Product Style | Female Seal-Lok - Swivel |
| Shape | Straight Short |
| Body Material | Steel |
| Nut Hex Size | 30 mm |
| Back-Up Hex Size | 24 mm |
| Specifications Met | ISO 12151-1-SWSA / SAE J516 |
| Quantity per Box | 2 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.406 |
Documents
Enquire about this part
The fastest way to get a price on this SKU is to email our quote desk — your reply lands with an engineer within 4 business hours.
Email a quote request Or use the quote form →
Parker 70 Series Hose Fitting - Female ORFS Swivel - 90° Elbow Long Drop - 3/4" (-12) - Hose -12 - Metric Hex - Steel

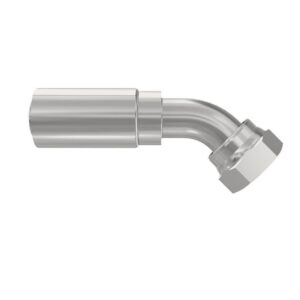

Parker 77 Series Hose Fitting - Female ORFS Swivel - 45° Elbow - 3/4" (-12) - Hose -10 - Steel
