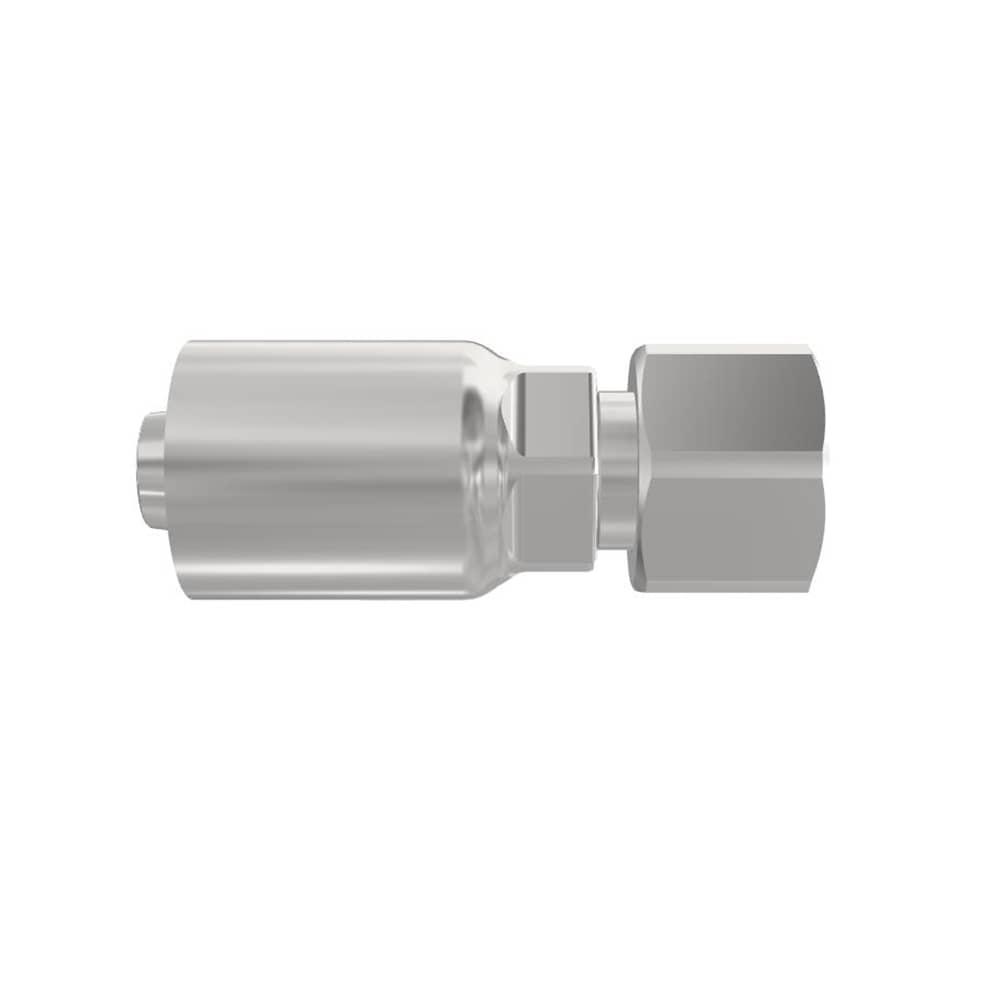

Parker 77 Series Hose Fitting - Female ORFS Swivel Short - 5/8" (-10) - Hose -8 - Steel
Parker 77 Series Hose Fitting, Female ORFS Swivel Short × 5/8" (-10) × Hose -8, steel. 410 bar.
Overview
Parker 77 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes. ORFS (O-ring face seal, ISO 8434-3 / SAE J1453) ends seal on an elastomer O-ring held in a flat face, giving a leak-free, vibration-resistant connection.
The 1JC77-10-8 is a Parker 77 Series Hose Fitting with a female ORFS swivel short end (5/8" (-10)) for size -8 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Rated for maximum working pressure 410 bar — the assembly is rated by the lower of hose and fitting. Suitable for lubricants (oils) and petroleum hydraulic fluids (petroleum base).
Typical applications include lubricating oils and petroleum base hydraulic fluids, across the industrial manufacturing equipment and off-road machinery industries.
Dimensions, pressure ratings and ordering details are on page 406 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 12.7 mm, -8 (Size) |
| Connection 2 Type | Female, Seal-Lok®, Swivel |
| Connection 2 Size | 1"-14 Thread |
| Port Type | ORFS |
| Shape | Straight Short |
| Configuration | Hose to Port |
| Body Material | Steel |
| Fitting Length | 65 mm |
| Connection Length | 31 mm |
| Hex Size 1 | 30 mm |
| Hex Size 2 | 22 mm |
| Maximum Operating Pressure | 410 bar |
| For Fluid Type | Lubricants (Oils), Petroleum Hydraulic Fluids (Petroleum Base) |
| Application | Lubricating Oils, Petroleum Base Hydraulic Fluids |
| Industry | Industrial Manufacturing Equipment, Off-road Machinery |
| Specifications Met | ISO 12151-1-SWSA, SAE J516 |
| Quantity per Box | 4 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.406 |
