Parker 77 Series Hose Fitting - SAE Code 61 Flange Head (SFL) - 45° Elbow - 3/4" Flange - Hose -8 - Steel
Parker 77 Series Hose Fitting, SAE Code 61 Flange Head (SFL) × 45° Elbow × 3/4" Flange × Hose -8, steel. 350 bar.
Overview
Parker 77 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes.

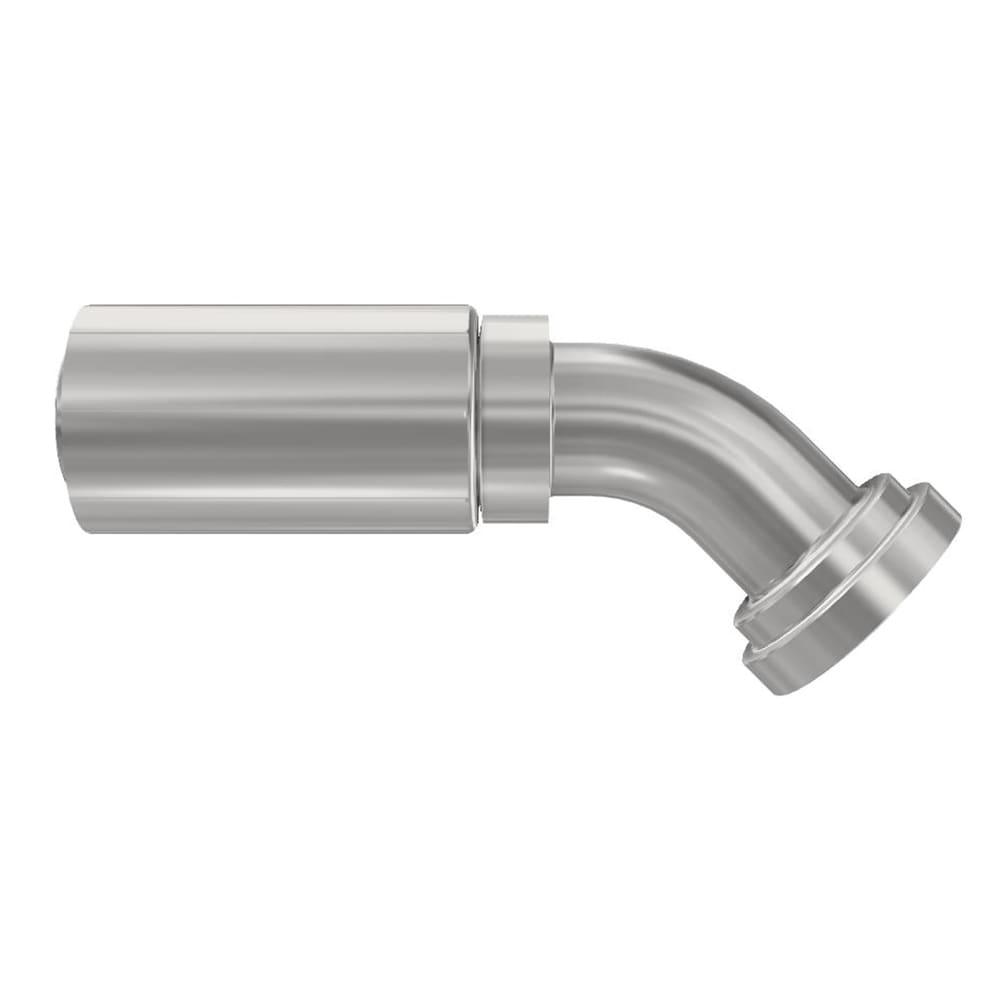

The 11777-12-8 is a Parker 77 Series Hose Fitting with a SAE Code 61 flange head (SFL) end (3/4" flange), 45° elbow, for size -8 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Rated for maximum working pressure 350 bar — the assembly is rated by the lower of hose and fitting. Suitable for lubricants (oils) and petroleum hydraulic fluids (petroleum base).
Typical applications include lubricating oils and petroleum base hydraulic fluids, across the industrial manufacturing equipment and off-road machinery industries.
Dimensions, pressure ratings and ordering details are on page 396 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 12.7 mm, -8 (Size) |
| Connection 2 Type | Code 61 Flange, Flange, SAE |
| Connection 2 Size | 3/4" |
| Port Type | SFL |
| Flange Size | 38 mm |
| Shape | Elbow 45° |
| Configuration | Hose to Port |
| Body Material | Steel |
| Fitting Length | 80 mm |
| Connection Length | 46 mm |
| Drop Length | 21 mm |
| Maximum Operating Pressure | 350 bar |
| For Fluid Type | Lubricants (Oils), Petroleum Hydraulic Fluids (Petroleum Base) |
| Application | Lubricating Oils, Petroleum Base Hydraulic Fluids |
| Industry | Industrial Manufacturing Equipment, Off-road Machinery |
| Specifications Met | ISO 12151-3-E45-L |
| Quantity per Box | 4 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.396 |
