Parker 77 Series Hose Fitting - SAE Code 62 Flange Head (SFS) - 3/4" Flange - Hose -16 - Stainless Steel
Parker 77 Series Hose Fitting, SAE Code 62 Flange Head (SFS) × 3/4" Flange × Hose -16, stainless steel. 420 bar.
Overview
Parker 77 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes.

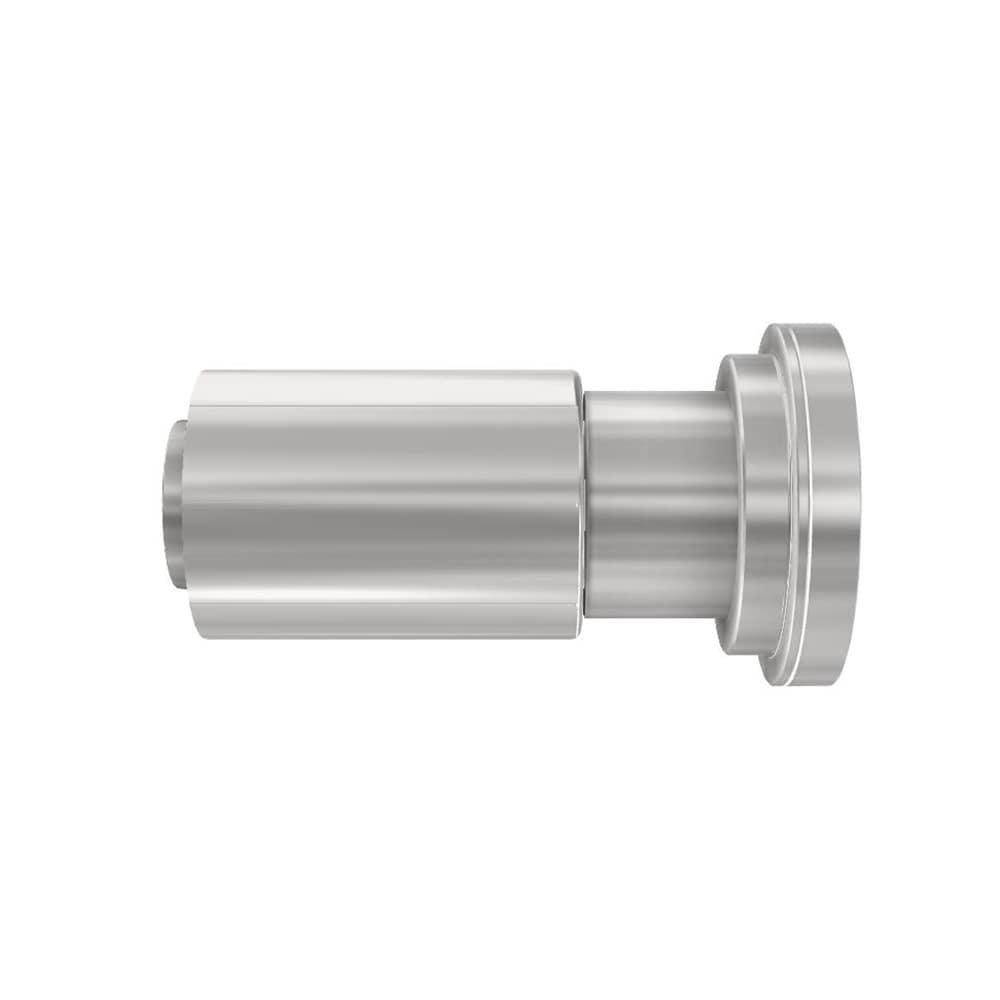

The 16A77-12-16C is a Parker 77 Series Hose Fitting with a SAE Code 62 flange head (SFS) end (3/4" flange) for size -16 hose, in stainless steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Rated for maximum working pressure 420 bar — the assembly is rated by the lower of hose and fitting. Suitable for lubricants (oils) and petroleum hydraulic fluids (petroleum base).
Typical applications include lubricating oils and petroleum base hydraulic fluids, across the industrial manufacturing equipment and off-road machinery industries.
Dimensions, pressure ratings and ordering details are on page 398 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 25.4 mm, -16 (Size) |
| Connection 2 Type | Code 62 Flange, Flange, SAE |
| Connection 2 Size | 3/4" |
| Port Type | SFS |
| Flange Size | 41 mm |
| Shape | Straight |
| Configuration | Hose to Port |
| Body Material | Stainless Steel |
| Fitting Length | 126 mm |
| Connection Length | 72 mm |
| Maximum Operating Pressure | 420 bar |
| For Fluid Type | Lubricants (Oils), Petroleum Hydraulic Fluids (Petroleum Base) |
| Application | Lubricating Oils, Petroleum Base Hydraulic Fluids |
| Industry | Industrial Manufacturing Equipment, Off-road Machinery |
| Specifications Met | ISO 12151-3-S-S |
| Quantity per Box | 4 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.398 |
