Parker 77 Series Hose Fitting - SAE Code 62 Flange Head (SFS) - 60° Elbow - 1" Flange - Hose -16 - Steel
Overview
Parker 77 Series hose fittings are no-skive Parkrimp™ crimp fittings: the hose is crimped straight onto the fitting without stripping the cover, using Parker Parkrimp crimpers and die sets. Each series is matched to specific Parker hose constructions — the approved hose and fitting combinations are listed in Catalogue 4400 — and is available in a full range of end configurations and sizes.

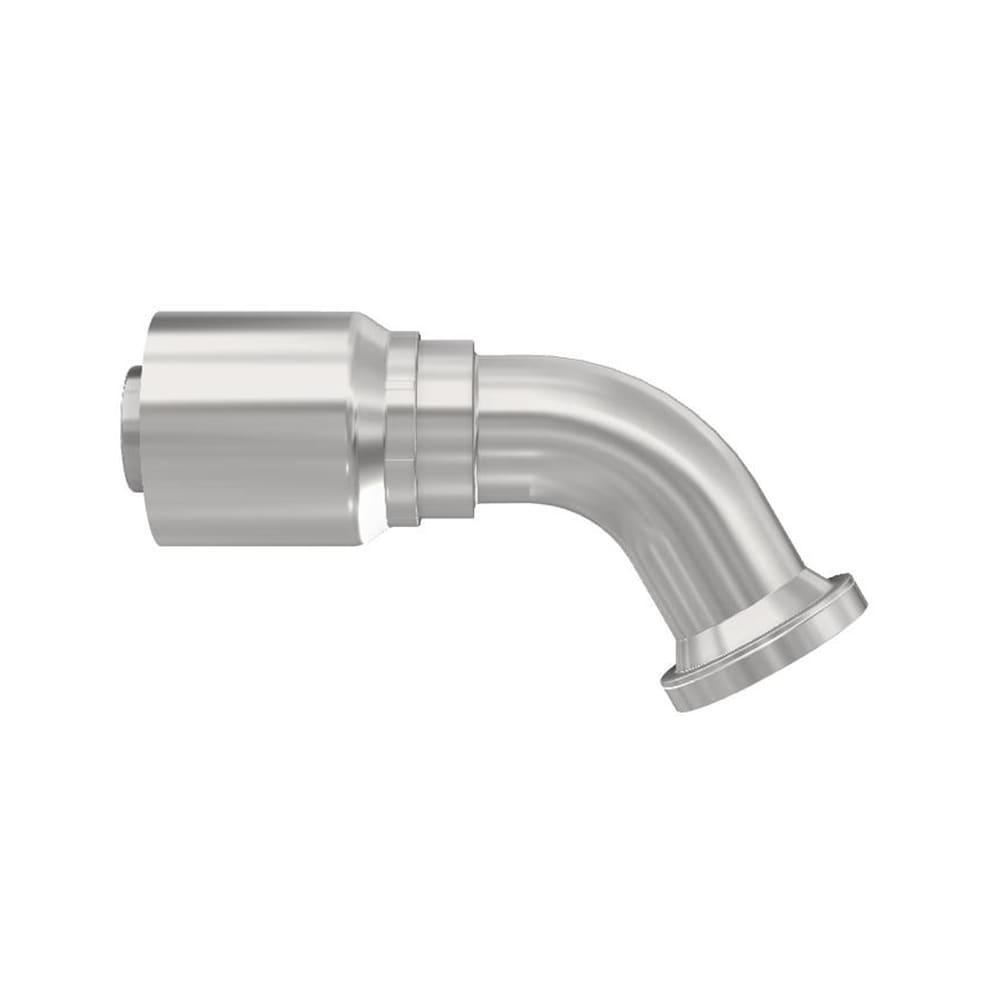

The 16G77-16-16 is a Parker 77 Series Hose Fitting with a SAE Code 62 flange head (SFS) end (1" flange), 60° elbow, for size -16 hose, in steel. Crimped onto the matching Parker hose with Parkrimp equipment (see the hose/fitting table in Catalogue 4400).
Dimensions, pressure ratings and ordering details are on page 164 of the Parker Hose Products Catalog 4400 (USA), attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Hose Inside Diameter | -16 (Size), 1" |
|---|---|
| Port Size | 1" |
| Flange Size | 1" |
| Product Style | SAE Code 62 Flange Head |
| Shape | Elbow 60° |
| Body Material | Steel |
| Quantity per Box | 2 |
| Catalogue reference | Parker Hose Products Catalog 4400 (USA), p.164 |
