Parker A-LOK 37° Flare (AN) Bulkhead Connector - 1" 37° Flare - 1" Tube O.D. - 316 Stainless Steel
Parker A-LOK 37° Flare (AN) Bulkhead Connector, 1" 37° Flare × 1" Tube O.D., 316 stainless steel. 165–324 bar, -425 °C to 649 °C.
Overview
Parker A-LOK® is Parker Instrumentation's two-ferrule compression tube fitting. On make-up the front ferrule seals against the fitting body while the Suparcase®-hardened back ferrule grips and supports the tube, giving a leak-tight joint that resists vibration and can be taken apart and remade. A-LOK is the standard choice for instrumentation, sampling and process-control tubing.

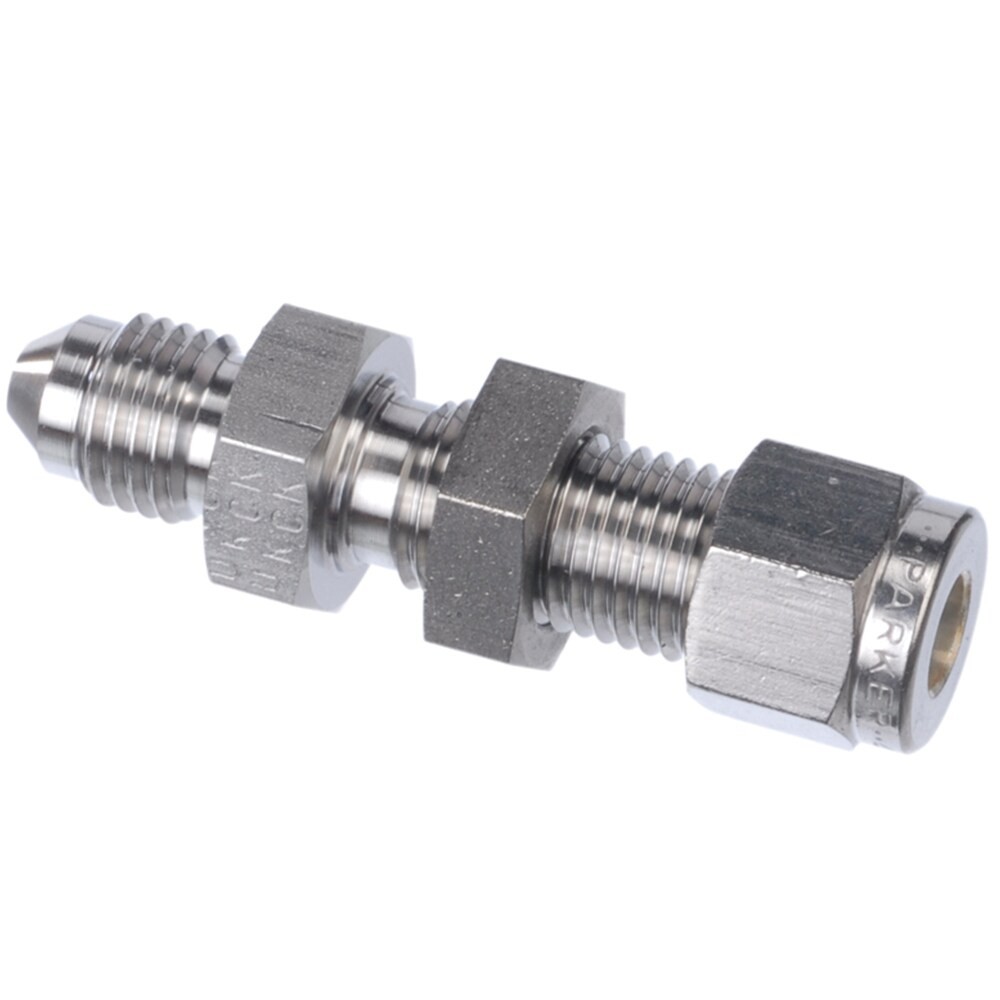

The 16XABC16-316 is a Parker A-LOK 37° Flare (AN) Bulkhead Connector in 316 stainless steel, connecting 1" 37° Flare to 1" tube O.D. Overall length 93 mm.
Rated for a working pressure of 165 to 324 bar depending on tube wall thickness and a temperature range of -425 °C to 649 °C. Suitable for gases, steam, oil, petroleum oil, fuels, natural gas (CNG), hydrogen and corrosive media.
Typical applications include CNG / LNG lines, analytical installations, chemical injection, corrosion resistant installations, hydrogen service, instrumentation, offshore control panels and others, across the chemical, oil & gas, petrochemical, power generation, renewable energy and transportation industries.
Dimensions, pressure ratings and ordering details are on page 53 of the Parker CPI / A-LOK Tube Fittings Catalogue 4230/4233, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 | 1" 37° Flare |
|---|---|
| Connection 2 | 1" Tube O.D. |
| Material | 316 Stainless Steel |
| Product Style | 37° Flare Bulkhead Connector |
| Product Type | 37° Flare |
| Length | 93 mm |
| Operating Pressure | 165 to 324 bar |
| Temperature Range | -425 °C to 649 °C |
| For Fluid Type | Corrosive, Hydrogen, Steam, Petroleum Oil, Fuels, Natural Gas (CNG), Gases, Oil |
| Application | Instrumentation, Hydrogen Service, Analytical Installations, Sensing Lines, CNG / LNG Lines, Chemical Injection, Corrosion Resistant Installations, Offshore Control Panels, Research Labs |
| Industry | Petrochemical, Chemical, Oil & Gas, Renewable Energy, Transportation, Power Generation |
| Quantity per Box | 5 |
| Catalogue reference | Parker CPI / A-LOK Tube Fittings Catalogue 4230/4233, p.53 |
