Parker A-LOK Male Elbow - 1/2" Tube O.D. - 1/4" BSPP - 316 Stainless Steel
Parker A-LOK Male Elbow, 1/2" Tube O.D. × 1/4" BSPP, 316 stainless steel. 179–462 bar, -255 °C to 649 °C.
Overview
Parker A-LOK® is Parker Instrumentation's two-ferrule compression tube fitting. On make-up the front ferrule seals against the fitting body while the Suparcase®-hardened back ferrule grips and supports the tube, giving a leak-tight joint that resists vibration and can be taken apart and remade. A-LOK is the standard choice for instrumentation, sampling and process-control tubing.

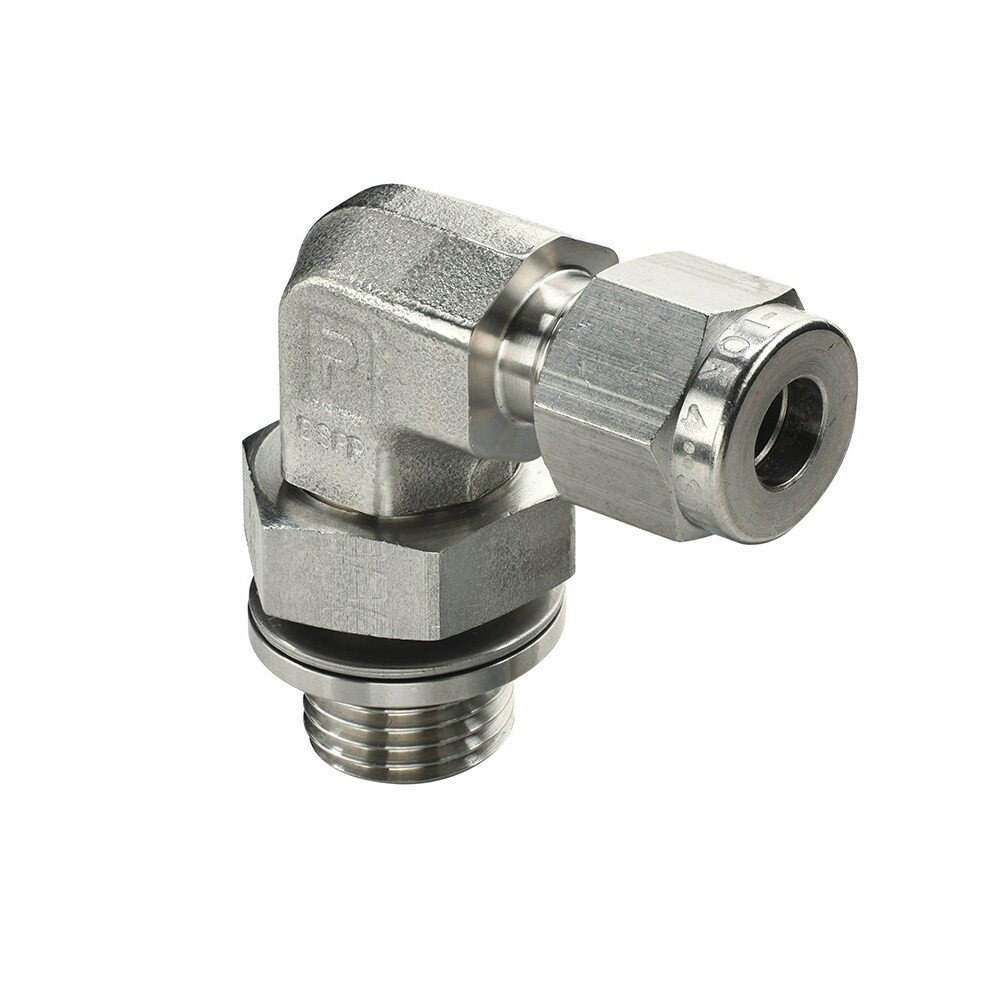

The 8MSEL4R-316 is a Parker A-LOK Male Elbow in 316 stainless steel, connecting 1/2" tube O.D. to 1/4" BSPP. Configuration: tube to o'ring seal.
Rated for a working pressure of 179 to 462 bar depending on tube wall thickness and a temperature range of -255 °C to 649 °C. Suitable for liquids, gases, steam, oil, petroleum oil, fuels, natural gas (CNG), hydrogen and others.
Typical applications include CNG / LNG lines, analytical installations, instrumentation, offshore control panels, research labs and sensing lines, across the chemical, microelectronics, nuclear, oil & gas, petrochemical, power generation, semiconductor and other industries.
Dimensions, pressure ratings and ordering details are on page 56 of the Parker CPI / A-LOK Tube Fittings Catalogue 4230/4233, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 | 1/2" Tube O.D. |
|---|---|
| Connection 2 | 1/4" BSPP |
| Material | 316 Stainless Steel |
| Configuration | Tube to O'Ring Seal |
| Product Style | Male BSPP Elbow (Positionable) |
| Shape | Elbow |
| Operating Pressure | 179 to 462 bar |
| Temperature Range | -255 °C to 649 °C |
| For Fluid Type | Corrosive, Petroleum Oil, Steam, Fuels, Hydrogen, Liquid, Natural Gas (CNG), Oil, Gases |
| Application | Sensing Lines, Analytical Installations, CNG / LNG Lines, Offshore Control Panels, Instrumentation, Research Labs |
| Industry | Chemical, Power Generation, Transportation, Oil & Gas, Petrochemical, Microelectronics, Nuclear, Semiconductor |
| Quantity per Box | 5 |
| Catalogue reference | Parker CPI / A-LOK Tube Fittings Catalogue 4230/4233, p.56 |
