Parker Hannifin Genuine

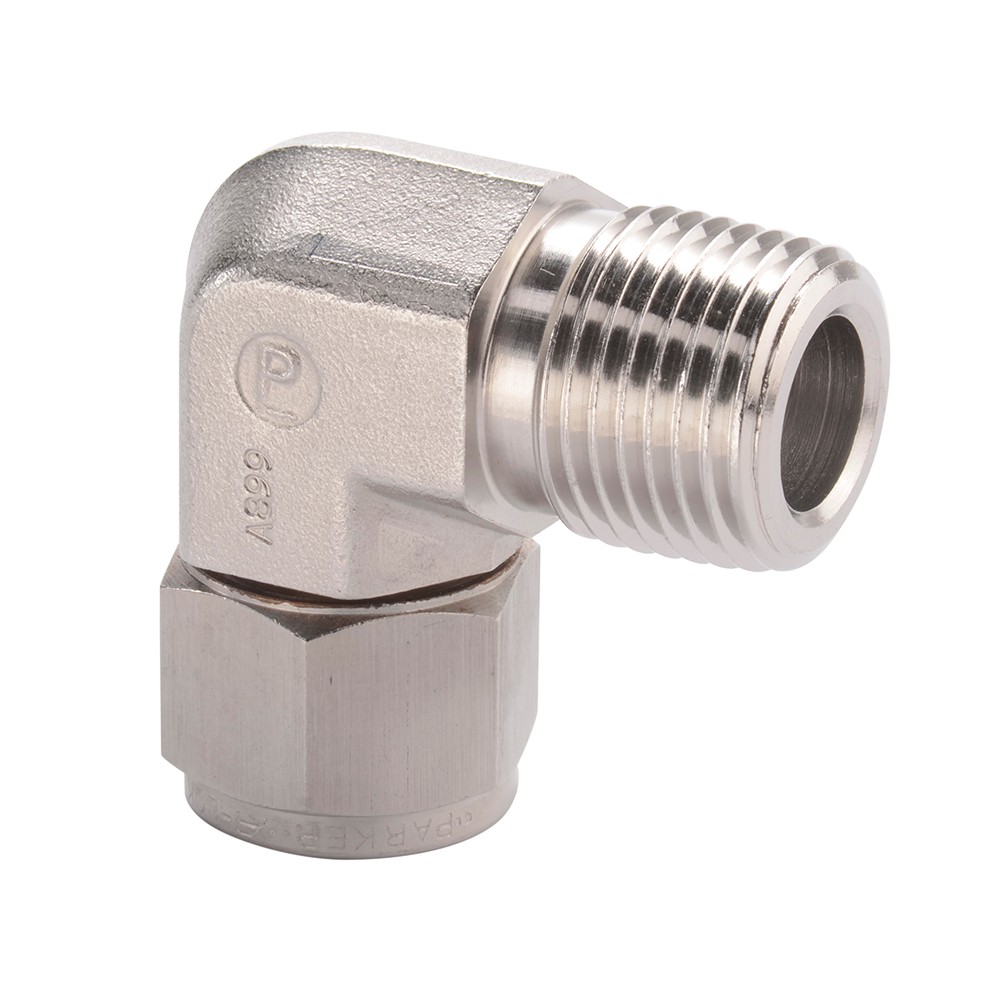

Parker A-LOK Male Elbow - 3/16" Tube O.D. - 1/8" NPT - 316 Stainless Steel
R1581,34Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 55 days
Or request a confirmed lead time for this SKU →
Material
316 Stainless Steel
Temperature Range
-255°C to 649°C
Connection 1
3/16" Tube O.D.
Specifications
| Connection 1 | 3/16" Tube O.D. |
|---|---|
| Connection 2 | 1/8" NPT |
| Material | 316 Stainless Steel |
| Configuration | Tube to Pipe (Male Pipe) |
| Product Style | Male National Pipe Tapered (NPT) Elbow |
| Shape | Elbow |
| Operating Pressure | 5500 to 10300 psi |
| For Fluid Type | Natural Gas (CNG), Gases, Corrosive, Steam, Oil, Petroleum Oil, Hydrogen, Liquid, Fuels |
| Length | 1.00 inch |
| Application | Instrumentation, CNG / LNG Lines, Analytical Installations, Offshore Control Panels, Hydrogen Service, Sensing Lines, Research Labs |
| Industry | Chemical, Transportation, Petrochemical, Microelectronics, Nuclear, Power Generation, Oil & Gas, Semiconductor |
| Temperature Range | -255°C to 649°C |
| Quantity per Box | 5 |
| Catalogue reference | Parker CPI / A-LOK Tube Fittings Catalogue 4230/4233, p.20 |
Documents
Catalogues Literature
Catalogues & Literature
Fittings Materials and Tubing Guide - Technical Catalog--4190-FMTG
The use of 316 Stainless Steel Instrument Tube Fittings on 6Mo Tube - White Paper--WP-316/6MO
Instrumentation Solutions for Hydrogen Powered Vehicles
White Paper: Optimising Small Bore Tubing Systems for Hydrogen Applications
Materials Capability for Small Bore Tubing Systems - Reference Material--4190-MAT
Designing Safety Into Hydrogen Systems
Learn the Anti-Corrosion Code - White Paper
Addressing the Challenge of Hydrogen Embrittlement in Metallurgy
Developments in Stainless Steel Instrumentation Tube Fittings - White Paper
Parker Tube Fitting Installation Manual - Installation Guide--4200-B4
Parker Suparcase Technology for Rear Ferrules - Reference Material--4230 B-15.1
Success Story: Hydrogen Power Helps Drive Down Carbon Emissions
Instrumentation Solutions for Hydrogen Applications--4190-HYD
Why Alloy 625 is the Top Choice for Extreme Oil and Gas Environments
Smarter Materials for Corrosion Control - Reference Material
