Parker A-LOK Tube End Male Adapter - 12mm Tube End - 3/8" BSPP (ED Seal) - 316 Stainless Steel
Parker A-LOK Tube End Male Adapter, 12mm Tube End × 3/8" BSPP (ED Seal), 316 stainless steel. 200–430 bar, -255 °C to 649 °C.
Overview
Parker A-LOK® is Parker Instrumentation's two-ferrule compression tube fitting. On make-up the front ferrule seals against the fitting body while the Suparcase®-hardened back ferrule grips and supports the tube, giving a leak-tight joint that resists vibration and can be taken apart and remade. A-LOK is the standard choice for instrumentation, sampling and process-control tubing.

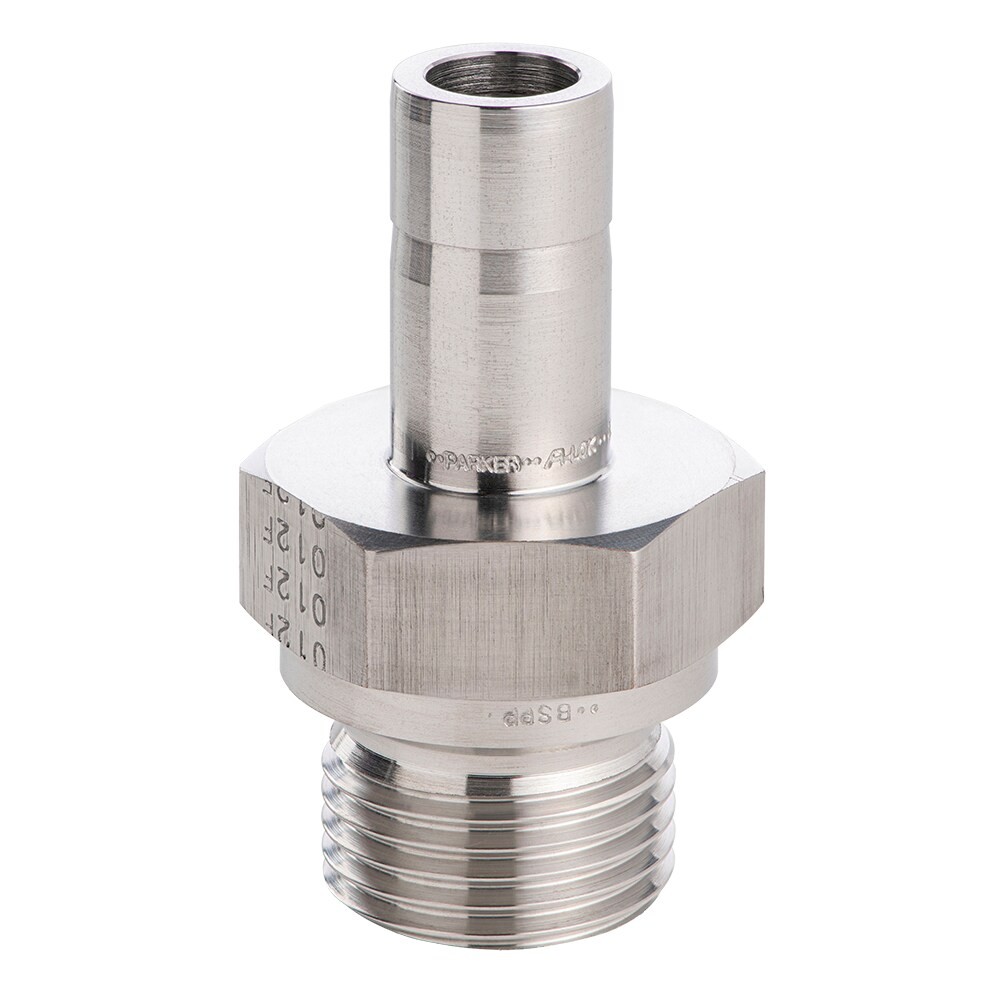

The M12MA3/8R-ED-316 is a Parker A-LOK Tube End Male Adapter in 316 stainless steel, connecting 12mm tube end to 3/8" BSPP (ED Seal). Overall length 45 mm.
Rated for a working pressure of 200 to 430 bar depending on tube wall thickness and a temperature range of -255 °C to 649 °C. Suitable for liquids, gases, steam, oil, petroleum oil, fuels, natural gas (CNG), hydrogen and others.
Typical applications include CNG / LNG lines, analytical installations, hydrogen service, instrumentation, offshore control panels, research labs and sensing lines, across the chemical, microelectronics, nuclear, oil & gas, petrochemical, power generation, semiconductor and other industries.
Dimensions, pressure ratings and ordering details are on page 46 of the Parker CPI / A-LOK Tube Fittings Catalogue 4230/4233, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 | 12mm Tube End |
|---|---|
| Connection 2 | 3/8" BSPP (ED Seal) |
| Material | 316 Stainless Steel |
| Product Style | Connector, Male BSPP Tube End Adapter with ED Seal |
| Shape | Straight |
| Length | 45 mm |
| Operating Pressure | 200 to 430 bar |
| Temperature Range | -255 °C to 649 °C |
| For Fluid Type | Natural Gas (CNG), Corrosive, Oil, Hydrogen, Gases, Petroleum Oil, Fuels, Liquid, Steam |
| Application | Hydrogen Service, Offshore Control Panels, Instrumentation, Analytical Installations, CNG / LNG Lines, Sensing Lines, Research Labs |
| Industry | Petrochemical, Nuclear, Semiconductor, Microelectronics, Chemical, Oil & Gas, Power Generation, Transportation |
| Quantity per Box | 5 |
| Catalogue reference | Parker CPI / A-LOK Tube Fittings Catalogue 4230/4233, p.46 |
