Parker Hannifin Genuine

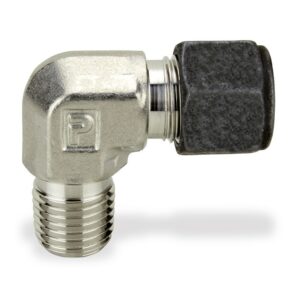

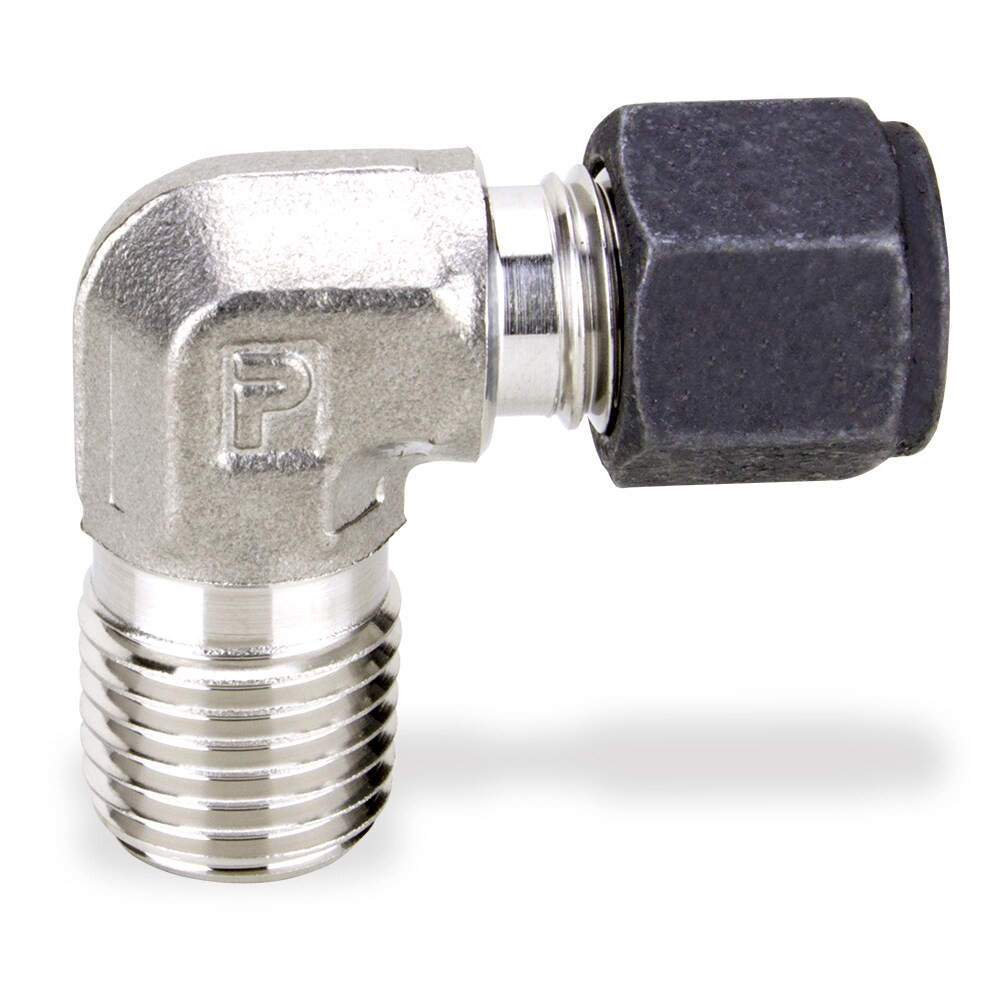

Parker CPI Male Elbow - 1/4" Tube O.D. - 1/4" NPT - Carbon Steel
R1046,11Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
On backorder · approx. 70 days
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10000 psi, 689.5 bar
Material
Carbon Steel
Temperature Range
-255°C, -425 °F to 605°C, 1200 °F
Specifications
| Connection 1 | 1/4" Tube O.D. |
|---|---|
| Connection 2 | 1/4" NPT |
| Material | Carbon Steel |
| Connection Size | 1/4 inch |
| Configuration | Tube to Pipe (Male Pipe) |
| Connection Type | Single Ferrule |
| Maximum Operating Pressure | 10000 psi, 689.5 bar |
| Tube Outside Diameter | 25 mm, 2 inch |
| Application | Oil & Gas Control Systems, Refining Process Control Systems, Chemical Process Control Systems, Pulp and Paper Process Control Systems |
| Temperature Range | -255°C, -425 °F to 605°C, 1200 °F |
| Quantity per Box | 1 |
| Catalogue reference | Parker CPI / A-LOK Tube Fittings Catalogue 4230/4233, p.20 |
