Parker Hannifin Genuine

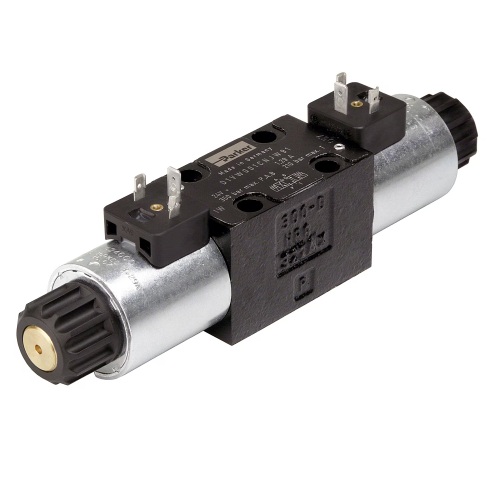

Parker D1VW NG6 double solenoid, 3-position spring centered – NBR – 24Vdc
Price on RequestLogin for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Valve function
4/3, A+B to tank centre
Maximum Operating Pressure
350 bar
Max Pressure
350 bar (P, A, B)
Overview
Parker D1VW NG6 double solenoid, 3-position spring centered – NBR – 24Vdc
Specifications
| Function | 2-Way |
|---|---|
| Connection Type | Connector as per EN 175301-803 |
| Maximum Operating Pressure | 350 bar |
| Temperature Range | -25°C to +60°C |
| Body Material | Cast Iron |
| Seal Material | NBR |
| Weight | 2.1 kg |
| For Fluid Type | Hydraulic Oil According to DIN 51524 |
| Product Series | Directional Control Valve |
| Marking | Standard |
| Spool Position | 3 positions, spring offset in position 0, operated in position a or b |
| Input Voltage | 24 VDC |
| Solenoid Option | Standard |
| Spool Code | 004 |
| Orifice Size | na |
| Actuation Type | Solenoid |
| Mounting Type | Subplate |
| Maximum Flow Rate | 80 L/min |
| Port Connection | NG06 / CETOP 03 |
| Mounting Position | Unrestricted, Preferably Horizontal |
| Max Pressure | 350 bar (P, A, B) |
| Working media | hydraulic oil (DIN 51524) |
| Mounting | NG06 / CETOP 3 (ISO 4401) |
| Max Flow | 80 l/min |
| Tank port rating | 210 bar DC / 140 bar AC |
| Protection | IP65 (with connector) |
| Catalogue reference | Parker MSG11-3500/UK |
| Valve function | 4/3, A+B to tank centre |
| Actuation / return | 2 solenoids, spring centred |
| Voltage | 24 V DC |
| Seals | NBR |
