Parker Hannifin Genuine

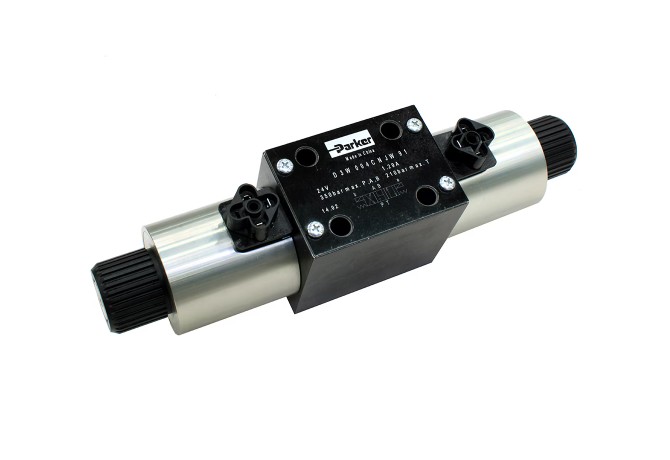

Parker D1VW Series Directional Control Valve
Price on RequestLogin for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Valve function
4/3 open centre
Max Pressure
350 bar (P, A, B)
Actuation / return
2 solenoids, spring centred
Overview
Parker D1VW Series Directional Control Valve
Specifications
| Valve function | 4/3 open centre |
|---|---|
| Actuation / return | 2 solenoids, spring centred |
| Max Pressure | 350 bar (P, A, B) |
| Max Flow | 150 l/min (DC) |
| Mounting | NG10 / CETOP 5 (ISO 4401) |
| Seals | NBR |
| Working media | hydraulic oil (DIN 51524) |
| Temperature Range | -20 to +70 °C |
| Catalogue reference | D3W catalogue (MSG11-3500/UK), p.1, 2, 3, 4, 5, 6, 7 |
Documents
Catalogues Literature
Enquire about this part
The fastest way to get a price on this SKU is to email our quote desk — your reply lands with an engineer within 4 business hours.
Email a quote request Or use the quote form →
Parker D3W NG10 (CETOP 05) Solenoid Directional Control Valve - Spool 009 (3-position) - double solenoid spring centred - NBR seals - 24Vdc - DIN 43650
Parker D3W NG10 (CETOP 05) Solenoid Directional Control Valve - Spool 001 (all ports closed in centre) - double solenoid spring centred - NBR seals - 24Vdc - DIN 43650
