Parker Hannifin Genuine

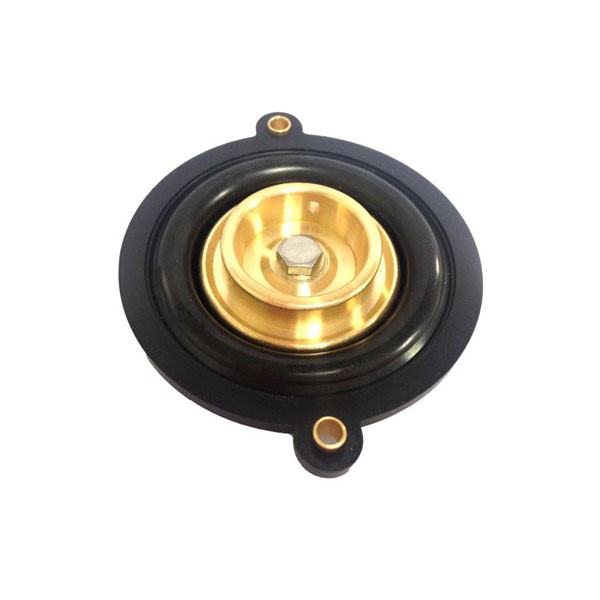

Parker Diaphragm Kit 2 1/2"Bsp - 3"Bsp NBR - DIAPHRAGM ONLY
R3561,24Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10–200 bar
Temperature Range
-40°C to +180°C
Working media
compressed air, neutral gases, water, oils, steam and aggressive fluids depending on body and seal
Overview
Parker Diaphragm Kit 2 1/2"Bsp - 3"Bsp NBR - DIAPHRAGM ONLY
Specifications
| Port / thread | 2 1/2"Bsp |
|---|---|
| Seal material | NBR |
| Maximum Operating Pressure | 10–200 bar |
| Temperature Range | -40°C to +180°C |
| Working media | compressed air, neutral gases, water, oils, steam and aggressive fluids depending on body and seal |
| Application | body-ported (inline) valves — solenoid, manual, mechanical and pneumatic. The valve pipes directly, with no sub-base |
| Pressure (detail) | up to 200 bar differential on fluid control; 10 to 16 bar on pneumatic directional valves. Source: Parker General Catalogue 0112UK, Viking Lite PDE2658TCUK and Viking Xtreme PDE2569TCUK |
| Size (detail) | M5 and 1/8" to 1" ports; orifice 0.8 to 75 mm |
| Temperature (detail) | -40°C to +180°C across the range, set by the seat seal or the valve body |
| Catalogue reference | 0112UK, p.414, 415, 417, 516, 519 |
