Parker Hannifin Genuine

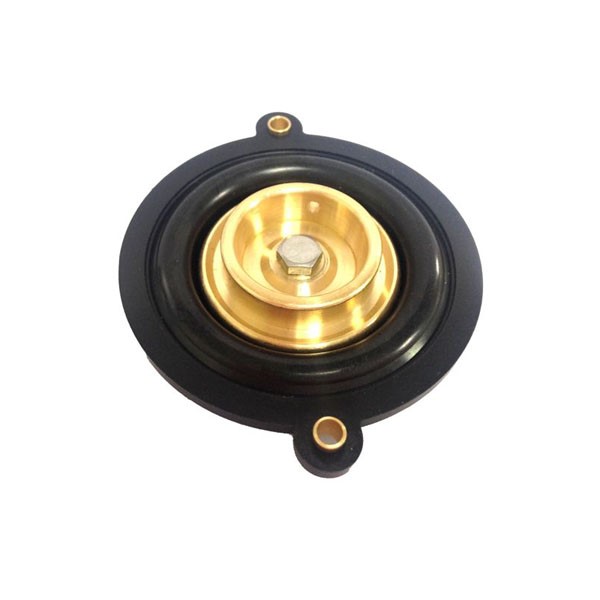

Parker Diaphragm Kit 3/4"Bsp - 1"Bsp EPDM - DIAPHRAGM ONLY
R963,52Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
10–200 bar
Temperature Range
-40°C to +180°C
Working media
compressed air, neutral gases, water, oils, steam and aggressive fluids depending on body and seal
Overview
306130SP - Parker Diaphragm Kit 3/4"Bsp - 1"Bsp EPDM - DIAPHRAGM ONLY
Diaphragm Service Kit. This kit contains Diaphragm only. Based on function, port size and seals material required. Spare part kit is not the same for Normally open and Normally closed versions.
Specifications
| Port / thread | 3/4"Bsp |
|---|---|
| Seal material | EPDM |
| Maximum Operating Pressure | 10–200 bar |
| Temperature Range | -40°C to +180°C |
| Working media | compressed air, neutral gases, water, oils, steam and aggressive fluids depending on body and seal |
| Application | body-ported (inline) valves — solenoid, manual, mechanical and pneumatic. The valve pipes directly, with no sub-base |
| Pressure (detail) | up to 200 bar differential on fluid control; 10 to 16 bar on pneumatic directional valves. Source: Parker General Catalogue 0112UK, Viking Lite PDE2658TCUK and Viking Xtreme PDE2569TCUK |
| Size (detail) | M5 and 1/8" to 1" ports; orifice 0.8 to 75 mm |
| Temperature (detail) | -40°C to +180°C across the range, set by the seat seal or the valve body |
| Catalogue reference | 0112UK, p.414, 415, 417, 516, 519 |
