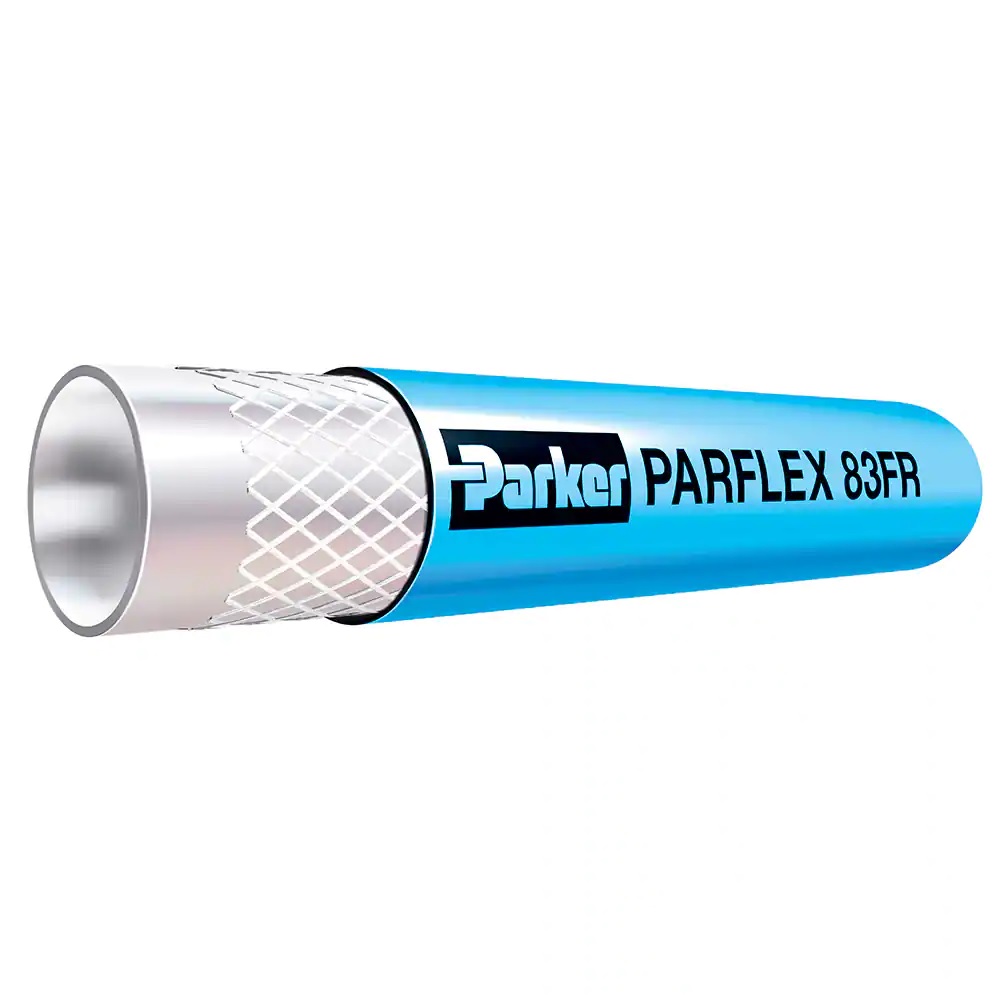

Parker Duragard General Purpose Polyurethane ID 1/4" 6.3mm - Black - 152.4m Reel
Overview
83FR-4-BLK-RL - Parker Duragard General Purpose Polyurethane ID 1/4" 6.3mm - Black - 152.4m Reel
Parflex DuraGard™ thermoplastic hose features weld spatter resistance, ease of flex, and a compact bend radius. It is available in twin-line and multi-line configurations, as well as multiple jacket colors to allow for quick identification. The specially formulated polyurethane tube and the flame and weld spatter resistant cover create an ideal, long-lasting solution for fluid handling applications. Review the literature listed under the Product Support tab for more information regarding the DuraGard™ Flame Resistant Polyurethane hose.
Markets:
• Fluid Handling
• Industrial Pneumatic
• Construction
Features/Benefits:
• Weld spatter resistant for added protection
• Excellent flexibility
• Excellent abrasion resistance allowing for a long-lasting, multipurpose hose
• Compact bend radius for ease of installation and usage
• Twinline hose or multi-line hose constructions available to meet specific application requirements
• Multiple jacket colors available for quick identification
Applications:
• Air hose
• Water hose
• Robotic welding
Certifications/Compliance:
• MSHA compliant cover
• Meets SAE J517 electrical standards (non-conductivity)
• UL94HB compliant cover
Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum
Specifications
| Maximum Operating Pressure | 21 bar, 2.1 MPa |
|---|---|
| Temperature Range | -29°C to +93°C |
| Outside Diameter | 12.2 mm |
| Weight | 0.07 kg/m |
| Compatible Fitting | 56 Series |
| Color | Black |
| Hose I.D. (inch) | 1/4 |
| Specifications Met | UL 94 (HB), SAE J517 (non-conductivity), MSHA |
| Media | Air, Water |
| Hose Inner Tube Material | Specially Formulated Polyurethane |
| Inside Diameter | 6 mm |
| Minimum Bend Radius | 25 mm |
| Cover Material | Polyurethane |
| Hose Reinforcement Material | Fiber |
| Application | Robotics, Pneumatics |
| Design Factor | 4:1 |
| Vacuum Pressure Rating | n/a |
