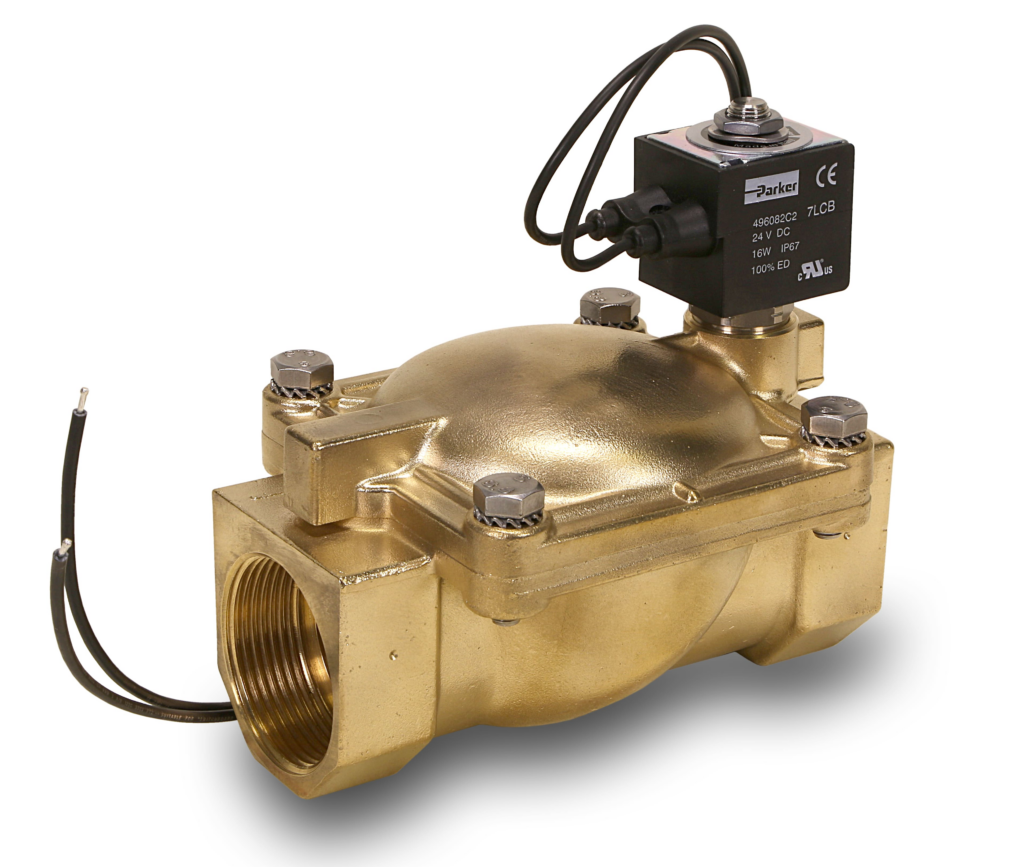

Parker General Purpose 2/2 Brass Valve Pilot Operated N/C 1 1/2"Bsp EPDM 7321BFH00 Orifice 40mm - No Coil - Coil Group 2.0
Overview
443797W - Parker General Purpose 2/2 Brass Valve Pilot Operated N/C 1 1/2"Bsp EPDM 7321BFH00 Orifice 40mm - No Coil - Coil Group 2.0
The 7321B/7322B Series Pilot (Servo) operated solenoid valves includes many options to fullfill the demand of the most challenging applications in Industrial and Process markets, when a precise and reliable control of Water (Steam), Light oils and Neutral Liquids control is required. The solid and robust design includes brass bodies and a stainless steel operator, rated for millions of life cycles. This product solution can optimize the total ownership costs in a broad range of heavy duty and high demanding applications, in safe or harsh environmentS, including ATEX.
Suitable for all Parker Lucifer coils corresponding to coil group 2.0
Markets:
- Industrial
- Plumbing
Applications:
- Irrigation
- Water Distribution
- Carwash
- Cooling and climate
- Fire Fighting
Features/Benefits:
- Anti water hammer effect
- Coil modularity
- Best in class flow rate
Specifications
| Function | 2 Way Valves 2/2 Valves For Water And Neutral Liquids Pilot Operated Brass Pipe Mounting Normally Closed |
|---|---|
| Orifice | 40 mm |
| Kv | 500 l/min (30 m³/h) |
| Operating pressure | 0.1–10 bar (AC) / 0.1–10 bar (DC) |
| Fluid temperature | -10°C to +140°C |
| Seat seal | EPDM |
| Coil group | 8 |
| Power (AC / DC) | 9 W / 2.0 W |
| Valve code | 443797W |
| Catalogue reference | Solenoid Valves for Fluid Control General Catalogue 0112UK V2.2 2022, p.72, 526 |
