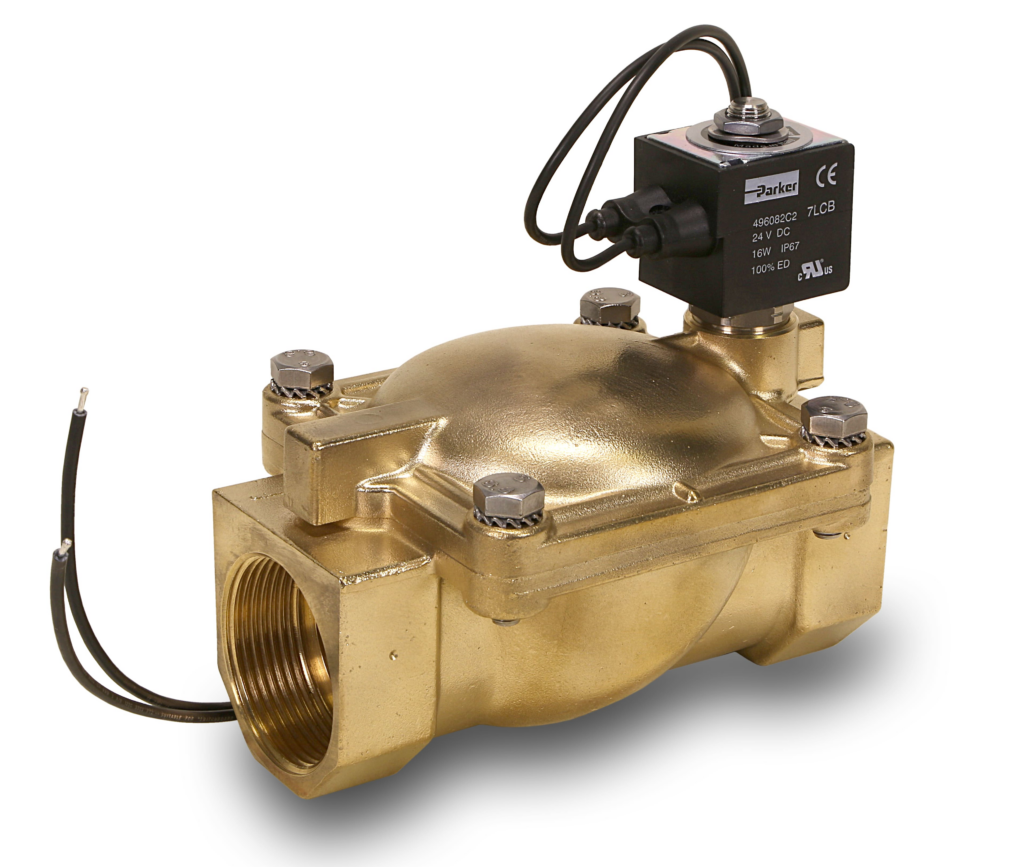

Parker General Purpose 2/2 Brass Valve Pilot Operated N/C 1 1/2"Bsp NBR 7321BFN00 Orifice 40mm - No Coil - Coil Group 2.0
Overview
The B Series indirect operated solenoid valves includes many options to fullfill the demand of the most challenging applications in Industrial and Process markets, when a precise and reliable control of Water, Light oils and Neutral Liquids control is required. The solid and robust design includes brass bodies and a stainless steel operator rated for million of life cycles. This product solution can optimize the total ownership costs in a broad range of heavy duty and high demanding applications in safe or harsh environment including ATEX.
Markets:
- Industrial
- Plumbing
Applications:
- Irrigation
- Water Distribution
- Carwash
- Cooling and climate
- Fire Fighting
Features/Benefits:
- Anti water hammer effect
- Coil modularity
- Best in class flow rate
Specifications
| Port size | 1 1/2" BSP |
|---|---|
| Orifice diameter | 40 mm |
| Flow factor Kv | 500 l/min |
| Flow factor KV | 30 m³/h |
| Nominal flow Qn | - |
| Min pressure differential | 0.1 bar |
| Max pressure differential (AC) | 10 bar |
| Min fluid temperature | -10 °C |
| Seat seal material | NBR |
| Drawing reference | 058 |
| Compatible coil housings | 7321BFN00 |
| Compatible coil bases | 481865 |
Documents
Enquire about this part
The fastest way to get a price on this SKU is to email our quote desk — your reply lands with an engineer within 4 business hours.
Email a quote request Or use the quote form →
