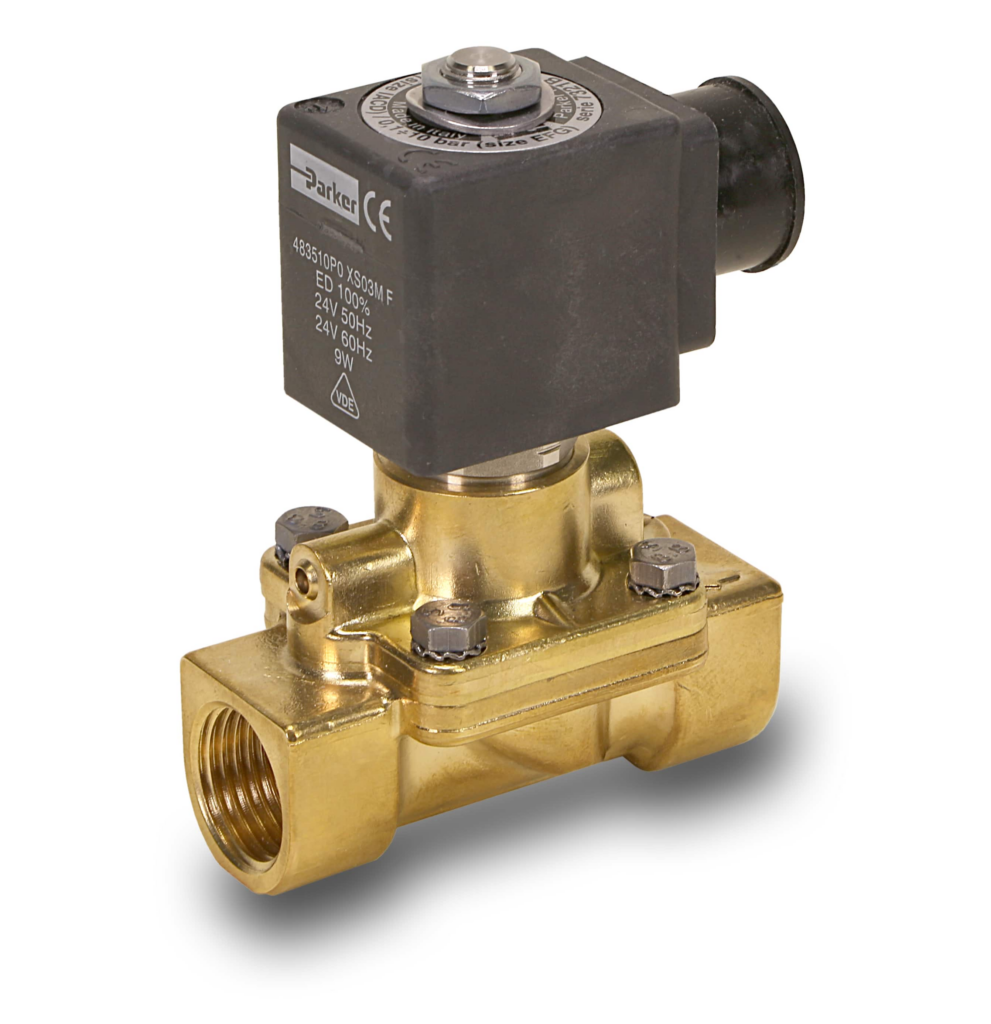

Parker General Purpose 2/2 Brass Valve Pilot Operated N/C 1/2"Bsp EPDM 7321BAH00 Orifice 13mm - No Coil - Coil Group 2.0
Overview
The B Series indirect operated solenoid valves includes many options to fullfill the demand of the most challenging applications in Industrial and Process markets, when a precise and reliable control of Water, Light oils and Neutral Liquids control is required. The solid and robust design includes brass bodies and a stainless steel operator rated for million of life cycles. This product solution can optimize the total ownership costs in a broad range of heavy duty and high demanding applications in safe or harsh environment including ATEX.
Markets:
- Industrial
- Plumbing
Applications:
- Irrigation
- Water Distribution
- Carwash
- Cooling and climate
- Fire Fighting
Features/Benefits:
- Anti water hammer effect
- Coil modularity
- Best in class flow rate
Specifications
| Function | 2 Way Valves 2/2 Valves For Water And Neutral Liquids Pilot Operated Brass Pipe Mounting Normally Closed |
|---|---|
| Port size | 3/8" BSP |
| Orifice | 13 mm |
| Kv | 50 l/min (3 m³/h) |
| Operating pressure | 0.1–10 bar (AC) / 0.1–10 bar (DC) |
| Fluid temperature | -10°C to +140°C |
| Seat seal | EPDM |
| Coil group | 8 |
| Power (AC / DC) | 9 W / 2.0 W |
| Valve code | 443781W |
| Catalogue reference | Solenoid Valves for Fluid Control General Catalogue 0112UK V2.2 2022, p.70, 526 |
