Parker Hannifin Genuine
Parker HMI Series 80.0JJHMIRN19MC300.0M1133
R49477,83Login for your trade price
excl. VAT · per unit
Trade customer? Sign in for your tier price.
Out of stock · Replenishment on order
Or request a confirmed lead time for this SKU →
Maximum Operating Pressure
210 bar max
Size / port thread
25–200 mm
Temperature Range
-20°C to +80°C
Overview

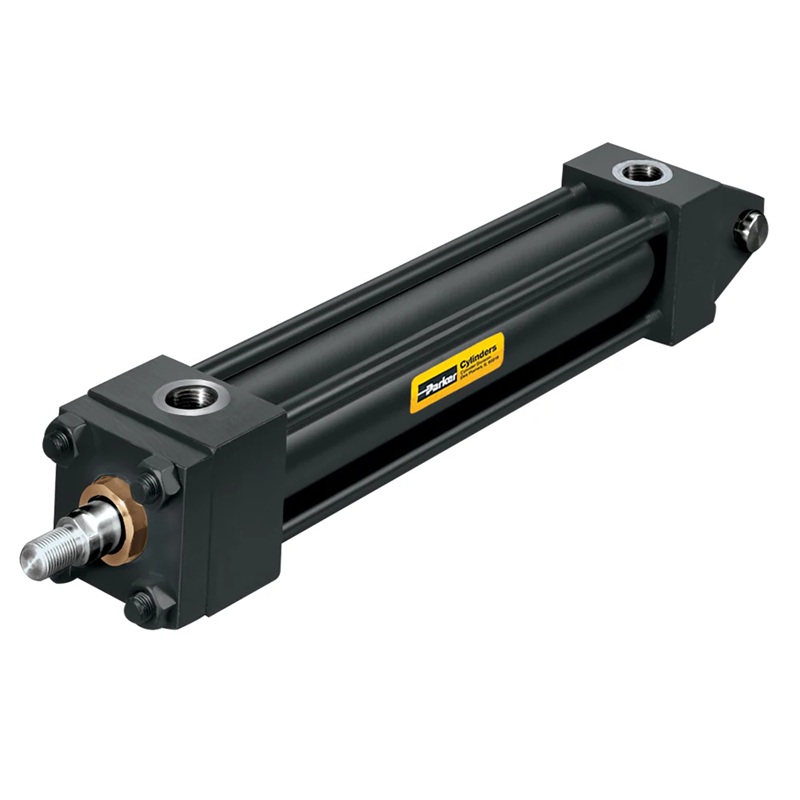

Parker HMI Series 80.0JJHMIRN19MC300.0M1133
Specifications
| Maximum Operating Pressure | 210 bar max |
|---|---|
| Size / port thread | 25–200 mm |
| Temperature Range | -20°C to +80°C |
| Working media | mineral oil, water glycol (HFC), phosphate ester (HFD-R), air or nitrogen |
| Application | industrial mill-type tie rod hydraulic cylinder |
| Pressure (detail) | 210 bar max; usable maximum is rod-dependent (rod selection charts, HMI p.25). Source: Parker HY07-1150/UK |
| Size (detail) | bore 25 to 200 mm; net stroke in mm (net = gross minus stop tube) |
| Temperature (detail) | the fluid sets both the seal and the range — mineral oil -20°C to +80°C; water glycol (HFC) -20°C to +60°C; phosphate ester (HFD-R) -20°C to +150°C |
| Catalogue reference | Parker HMI Hydraulic Cylinders HY07-1150 |
Documents
Catalogues Literature
Enquire about this part
The fastest way to get a price on this SKU is to email our quote desk — your reply lands with an engineer within 4 business hours.
Email a quote request Or use the quote form →
