Parker IF Series Crimp Shell - Hose -32 Tube - Steel
Overview
Parker IF Series Interlock hose fittings are crimp fittings for Parker's high-pressure multispiral hoses in the toughest duty cycles: the interlocking ferrule grips the hose reinforcement for maximum retention under pressure impulse, on mining, construction and heavy mobile machinery.

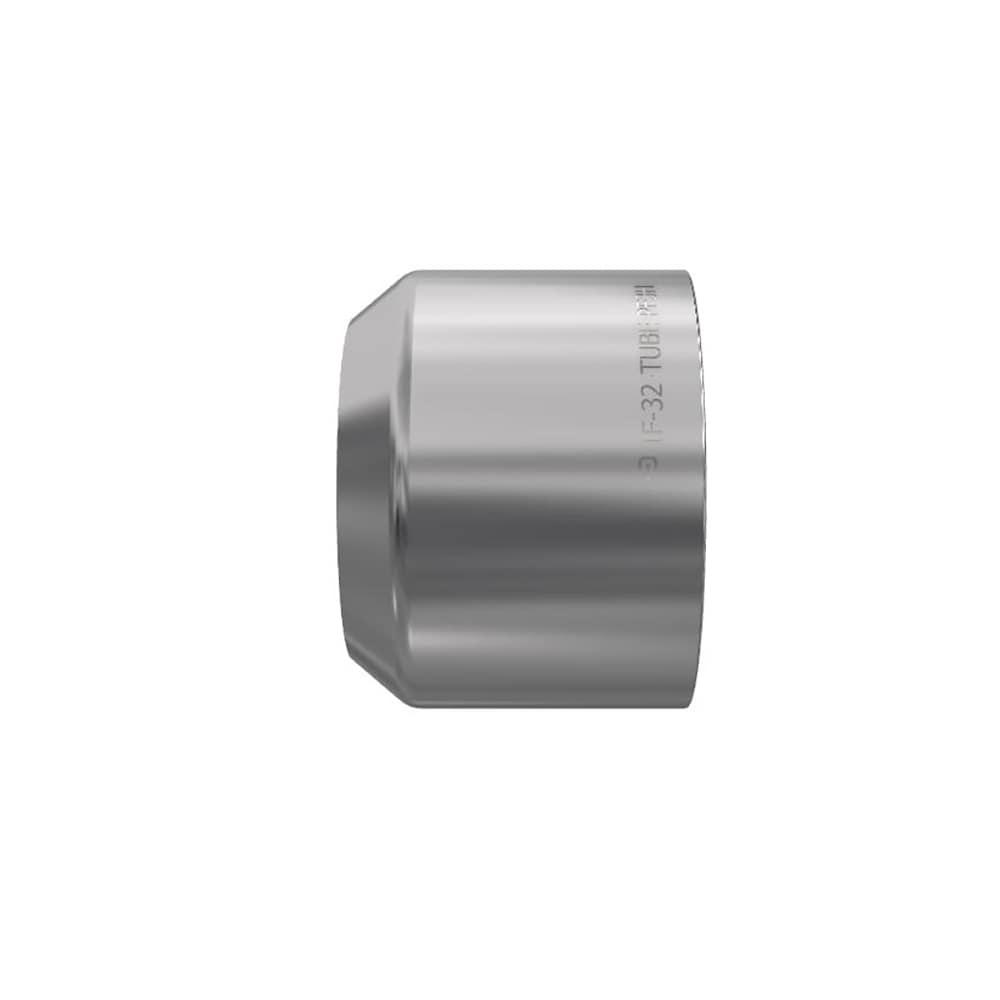

The 100IF-32-TUBE is a Parker IF Series crimp shell (ferrule) for size -32 hose (tube version), in steel. It is the outer sleeve crimped over the hose onto the IF Series fitting stem.
Suitable for air (water-glycol), coolants (water-glycol), hydraulic fluids, mineral hydraulic oil and water (water-glycol).
Typical applications include hydraulics, across the off-road machinery and transportation industries.
Dimensions, pressure ratings and ordering details are on page 305 of the Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, attached under Documents.
Genuine Parker Hannifin product supplied by Applied Group of Companies.
Specifications
| Connection 1 Type | Hose |
|---|---|
| Connection 1 Size | 50.8 mm Hose I.D., -32 (Size) |
| Connection 2 Type | No-skive, Shell |
| Shape | Straight |
| Configuration | Hose to Port |
| Body Material | Steel (Tube) |
| Connection Length | 50.8 mm (see drawing Legend B) |
| For Fluid Type | Air (Water-Glycol), Coolants (Water-Glycol), Hydraulic Fluids, Mineral Hydraulic Oil, Water (Water-Glycol) |
| Application | Hydraulics |
| Industry | Off-road Machinery, Transportation |
| Quantity per Box | 1 |
| Catalogue reference | Parker Hydraulic Hoses, Fittings and Equipment CAT/4400/UK, p.305 |
